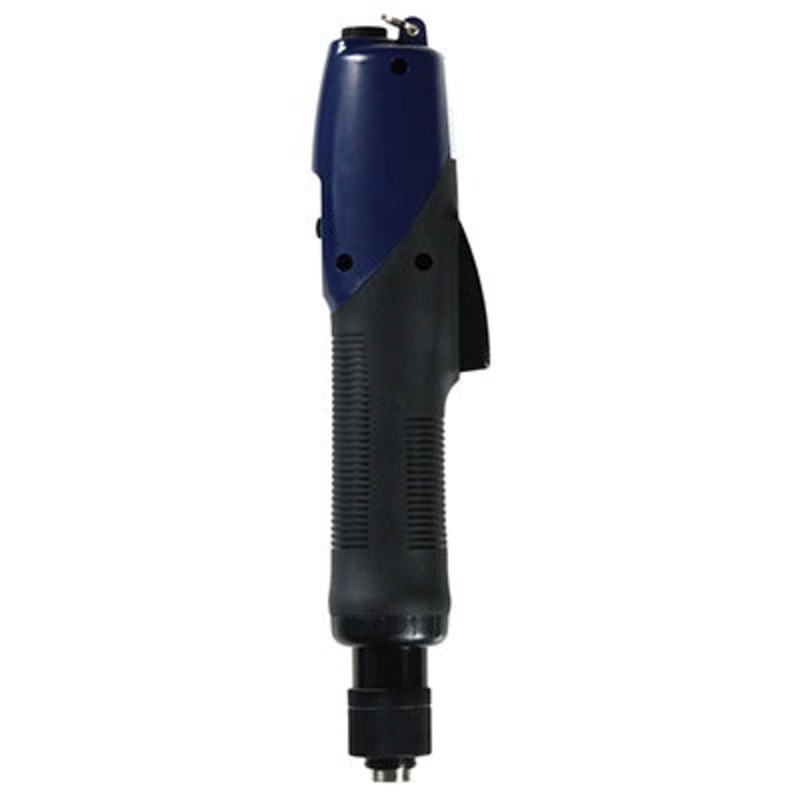

Delta Regis Electric Torque Screwdriver, 0.29 – 1.86 Nm, 1000/700 Lever – CESL824

The Electric Torque Screwdriver is a precision fastening tool engineered for accurate torque control in high-repetition or quality-critical applications. Unlike cordless versions, this tool is powered by AC or DC sources, offering continuous performance, especially on production lines.

Features:

• Precise torque control, low torque reaction
• Quiet brushless DC motor means no carbon dust
• Compact body design results in exceptional maneuverability and operator comfort
• Less heat build-up and higher duty cycle capabilities than conventional brush motors
• 3 year motor warranty
• Screwdriver includes – torque lock sleeve, 6-pin, 2m long cable and Philips bits
• CE, RoHS Compliant
• Power supply required – sold separately

Specifications:

• Start Type: Lever
• Speed (RPM): 1000/700
• ESD Safe / Non ESD Safe: Non ESD Safe
• Class: 32V Standard Shut-Off
• Compliance: CE / RoHS
• Diameter: 1.4 in
• Drive Size: 1/4 in Hexagon Drive
• Input: 32-24VDC
• Overall Length: 245mm
• Style: Inline
• Torque Range: 2.6 – 16.5 in.lbs
• Overall Weight: 1.1 lbs

Digital Assets:

• Manual
• Dimensional Drawings
• Part Sheet
