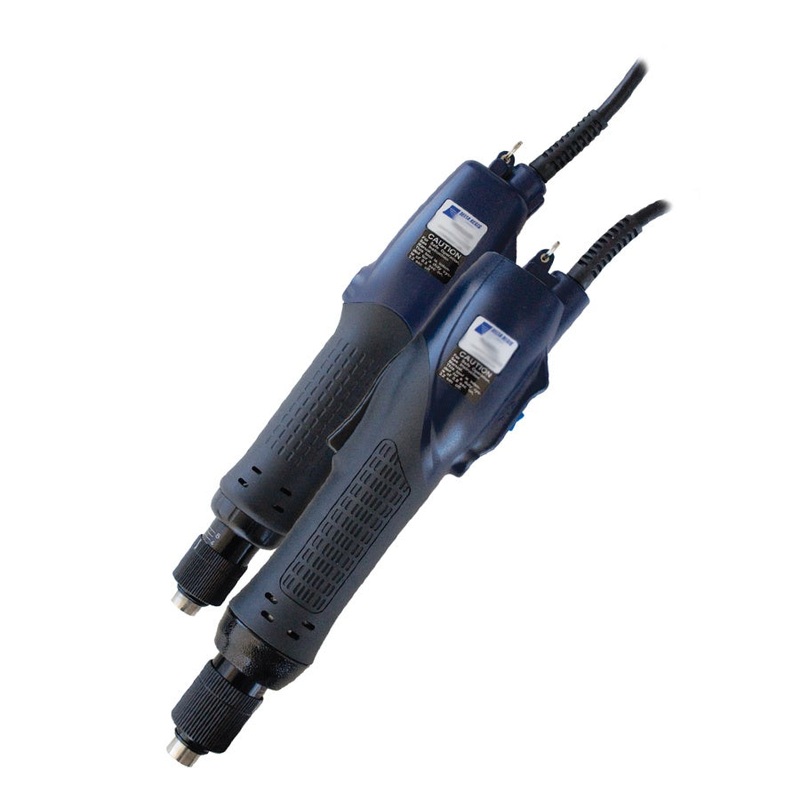

Delta Regis Electric Torque Screwdriver, 1.8 – 10.4 in.lbs, 1000 RPM, Shut -Off Clutch, Push Start – ESL300P

The Electric Torque Screwdriver is a precision fastening tool engineered for accurate torque control in high-repetition or quality-critical applications. Unlike cordless versions, this tool is powered by AC or DC sources, offering continuous performance, especially on production lines.

Features:

• Direct plug-in screwdriver, built-in AC to DC rectifier
• Motor shuts off when torque setting is reached
• Ergonomic soft cushion grip for operator comfort
• Shut-off clutch provides excellent torque repeatability
• External torque adjustment – easy to set up and secure with optional torque locking sleeve
• Wide torque range – single model versatility
• Externally replaceable brushes for ease of maintenance
• 1/4″ hex bit holder accepts standard power bits
• Integral 9 ft (2.7 m) cable with EMC noise filtering module

Specifications:

• Start Type: Push
• Class: 120V Shut-Off (Carbon Brush Motor)
• Compliance: RoHS
• Diameter: 1.5 in
• Drive Size: 1/4 in Hexagon Drive
• Input: 120VAC
• Overall Length: 241mm
• Speed (RPM): 1000
• Torque Range: 1.8 – 10.4 in.lbs
• Overall Weight: 1.2 lbs

Digital Assets:

• Manual
• Dimensional Drawings
