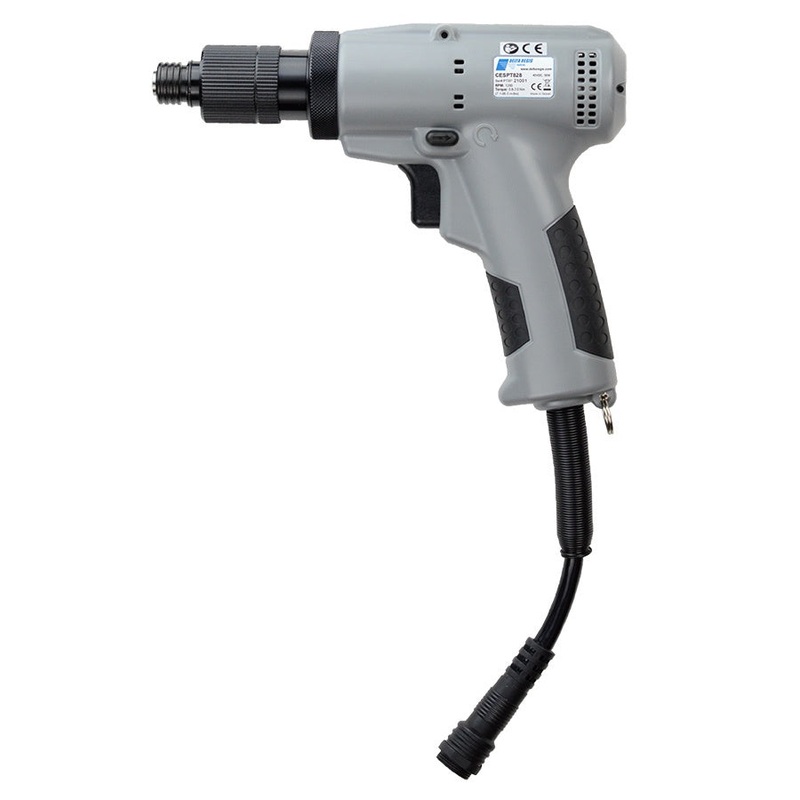

Delta Regis Electric Torque Screwdriver, 2.5 – 7 Nm, 850 Trigger – CESPT830

The Electric Torque Screwdriver is a precision fastening tool engineered for accurate torque control in high-repetition or quality-critical applications. Unlike cordless versions, this tool is powered by AC or DC sources, offering continuous performance, especially on production lines.

Features:

• Clean, powerful 40V brushless motor technology
• 1/4″ hex drive
• Fan-cooled motor reduces heat build-up
• Dependable, long lifespan
• Two speed selections available
• Trigger start, forward/reverse switch
• Compact, ergonomic pistol housing
• Available with top or bottom cable connection
• Optional ESD-safe housing available
• CE/RoHS compliant

Specifications:

• Cable Connection Type: Bottom Connection
• ESD Safe / Non ESD Safe: Non ESD Safe
• Class: 40V Standard Shut-Off
• Compliance: CE / RoHS
• Diameter: 1.7 in
• Drive Size: 1/4 in Hexagon Drive
• Overall Length: 185mm
• Speed (RPM): 850
• Start Type: Trigger
• Style: Pistol
• Torque Range: 22.2 – 62.0 in.lbs
• Overall Weight: 1.5 lbs

Digital Assets:

• Dimensional Drawings
• Manual
