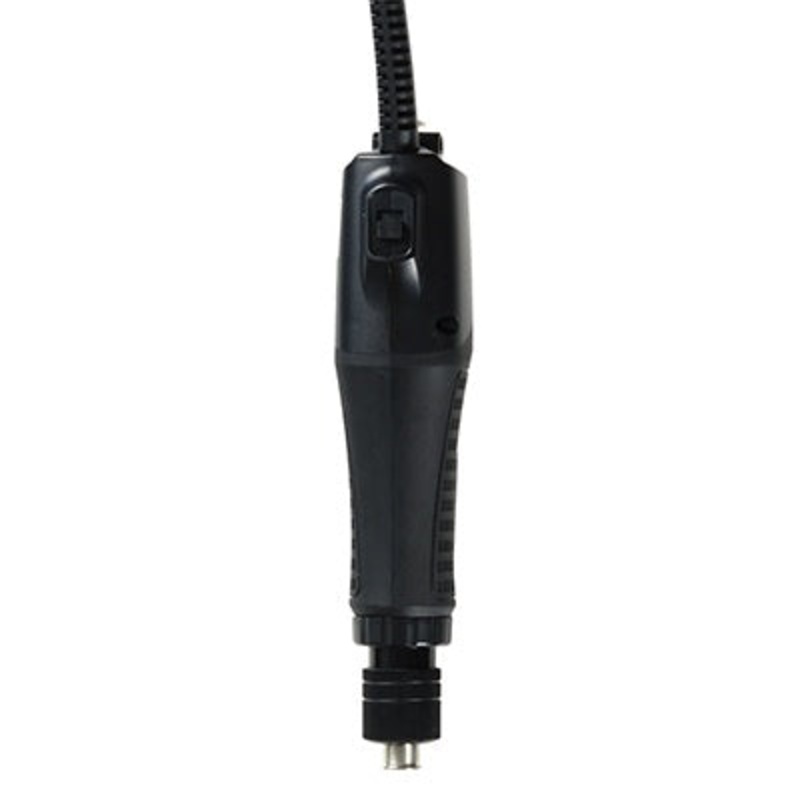

Delta Regis ESD Safe Housing Electric Torque Screwdriver, 0.02 – 0.34 Nm, 500/350 Lever – CESL810S-ESD

Inline Electric Torque Screwdrivers provide excellent ergonomic benefits and increase efficiency to most assembly applications. Our inline electric torque controlled screwdrivers are offered in both AC direct plug-in a well as DC with external power supply and are offered in multiple torque ranges, start types and operating speeds. The Delta Regis CESL8 Series Premium Brushless Screwdrivers provide the ultimate combination of ergonomics, precision, performance and environmental cleanliness to the installation of fasteners.

Features:

• Precise torque control, low torque reaction
• Quiet brushless DC motor means no carbon dust
• Compact body design results in exceptional maneuverability and operator comfort
• Less heat build-up and higher duty cycle capabilities than conventional brush motors
• 3 year motor warranty
• Screwdriver includes – torque lock sleeve, 6-pin, 2m long cable and Philips bits
• CE, RoHS Compliant
• Power supply required – sold separately

Specifications:

• Speed (RPM): 500/350
• Class: 32V Compact Shut-Off
• Compliance: CE / RoHS
• Diameter: 1.3 in
• Drive Size: 1/4 in Hexagon Drive
• ESD Safe / Non ESD Safe: ESD Safe
• Input: 32-24VDC
• Overall Length: 185mm
• Start Type: Lever
• Style: Inline
• Torque Range: 0.2 – 3.1 in.lbs
• Overall Weight: 0.8 lbs

Digital Assets:

• Manual
• Dimensional Drawings
• Part Sheet
