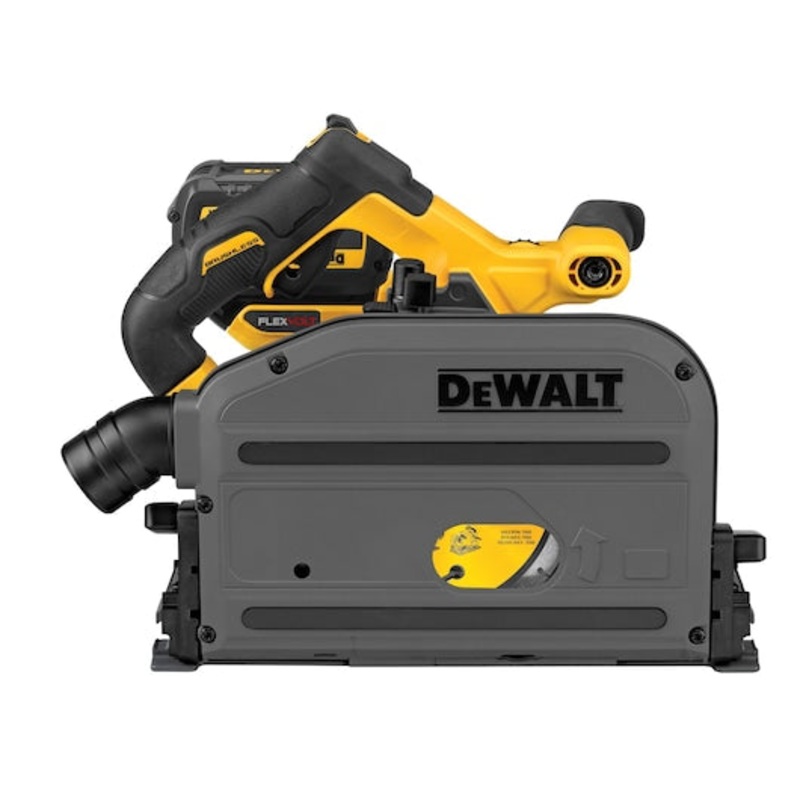

Cut through hardwoods up to 2-1/8 in thick with the powerful 60V MAX* Brushless 6-1/2 in Track Saw Kit. Powered by advanced FLEXVOLT 20V/60V MAX* batteries, this saw is designed for optimal ergonomics with a straight plunge mechanism and an overmolded grip. When used with Track Saw cutting system components, this tool provides precise, straight and splinter-free cuts in a range of applications.

Features:

• Zero clearance TRACKSAW cutting system delivers precise, straight, splinter-free cuts
• For use with TRACKSAW dual-edged tracks for perfectly straight cuts in both directions
• On-track cut depth: 2/1/8 in.(54 mm.) at 90, 1-5/8 in (41 mm.) at 45
• Brushless motor effortlessly powers through hardwoods up to 2/1/8 in thick
• Continuous antikickback mechanism and riving knife prevent kick-back when engaged
• Straight plunge mechanism for optimal ergonomics
• Low-profile blade guard allows saw to be used in confined spaces
• Universal 1-1/4 in dust port for 90% efficient dust collection with vacuum

Specifications:

• Bare Tool/Kit: Tool
• Tool Type: Tracksaw
• Blade Diameter: 6-1/2 in
• Cutting Depth: 1-5/8 in
• Cutting Angle: 45 deg
• Power Supply: 1010 W
• Voltage Rating: 60 V
• Battery Type: Lithium-Ion
• Battery Capacity: 6 Ah
• Bevel Capacity: 47 deg
• Housing Color: Black/Yellow
• Overall Length: 17.37 in
• Overall Width: 13.25 in
• Overall Height: 11.87 in
• Includes: (1) Blade, (1) Blade Wrench, (1) 60V MAX* 6-1/2 in Track Saw
• Application: For Custom Built-Ins (Cabinets on Site), Filler Strips, Laminate Counter Tops, Hardwood Floor Installation, Display, Sets, Sign Manufacturing, Boat Making Applications
• Warranty: 3 Years Limited

Documents

Instruction/Installation Manual
