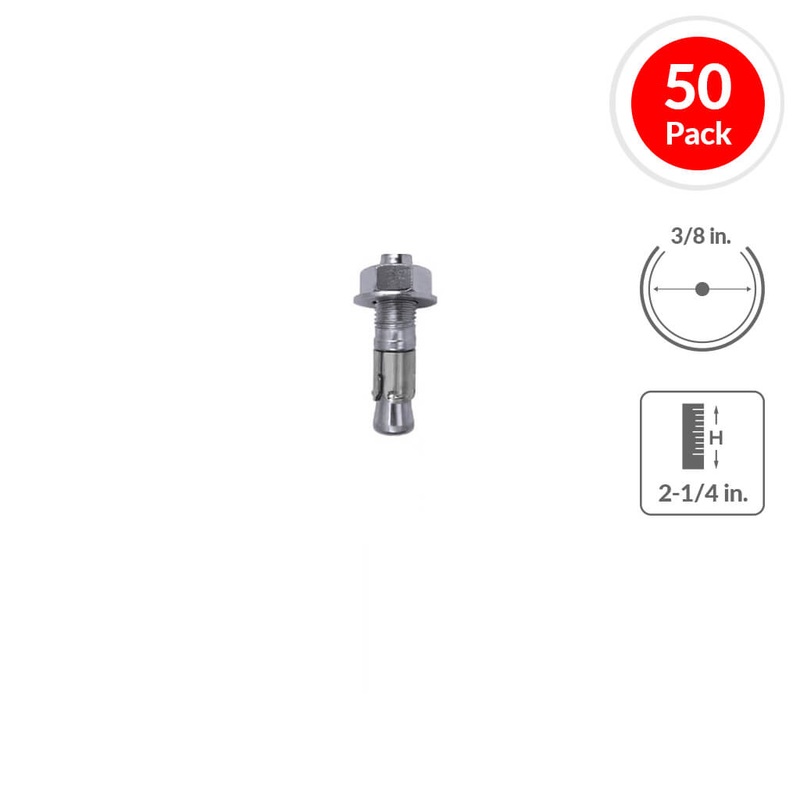

DEWALT POWERS 7410SD1 3/8 in. x 2-1/4 in. POWER-STUD+ SD1 Wedge Expansion Anchor (50-Pack) is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.

Features

• Consistent performance in high and low strength concrete
• Nominal drill bit size is the same as the anchor diameter
• Anchor can be installed through standard fixture holes
• Length ID code and identifying marking stamped on head of each anchor
• Anchor design allows for follow-up expansion after setting under tensile loading
• UNC threaded stud
• Zinc plated carbon steel body with expansion clip, nut and washer
• Anchor size range: 1/4″ diameter through 1-1/4″ diameter
• General applications: Structural connections, i.e., beam and column anchorage; safety-related attachments; interior applications / low level corrosion environment; tension zone applications such as cable trays and strut, pipe supports, fire sprinklers; seismic and wind loading

Specifications

Model No. 7410SD1 Anchor Size 3/8″ x 2-1/4″ Thread Length 7/8″ Quantiy per Box 50 Anchor Body Medium carbon steel Hex nut Carbon Steel, ASTM A 563, Grade A Washer Carbon Steel, ASTM F 844; meets dimensional requirements of ANSI B18.22.2. Type A Plain Expansion wedge (clip) Carbon Steel Plating Zinc plating according to ASTM B 633, SC1 Type III (Fe/Zn 5). Minimum plating requirements for Mild Service Condition.
