Description

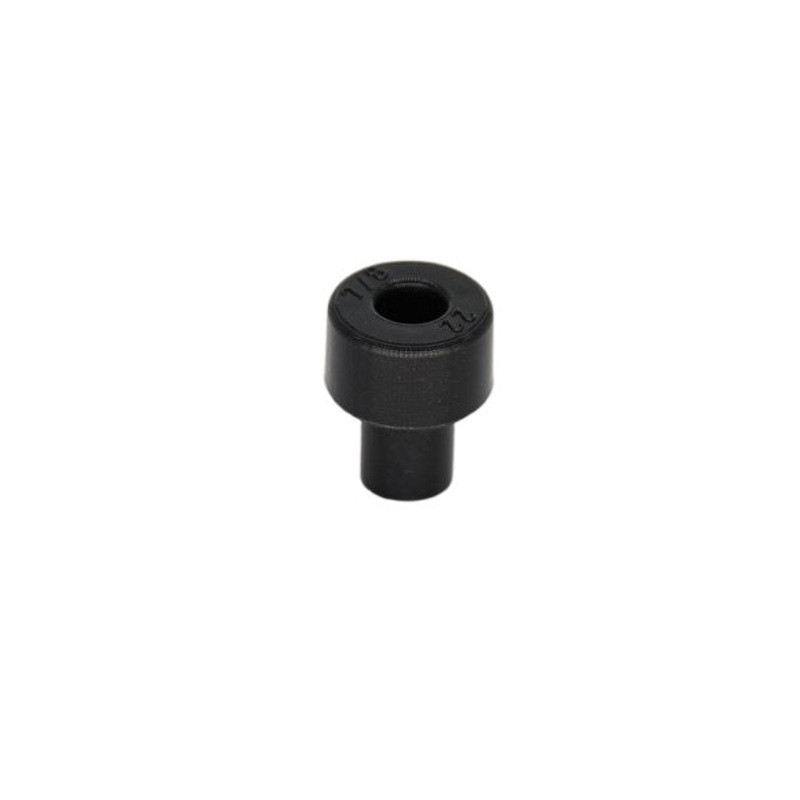

Piston Plugs are used for installation of chemical anchors, they allow for air bubble free filling of drill holes. The matched tolerance design between the piston plug and drilled hole virtually eliminates the formation of voids and air pockets during adhesive dispensing. They are always required in overhead installations and when the borehole depth is greater than 8-27/32 in (250 mm).

Feature Bullets

• For 1 in threaded rod & #8 rebar
• For overhead and horizontal installations
• Can be attached to the mixing nozzle or a mixing nozzle extension
• For use with octogold chemical anchor system

Specifications:

• Outside Diameter: 1-1/8 in
• Material: Acrylic, Vinylester Adhesive
• Applicable Materials: Masonry & Concrete
• Application: For Heavy Duty Applications
