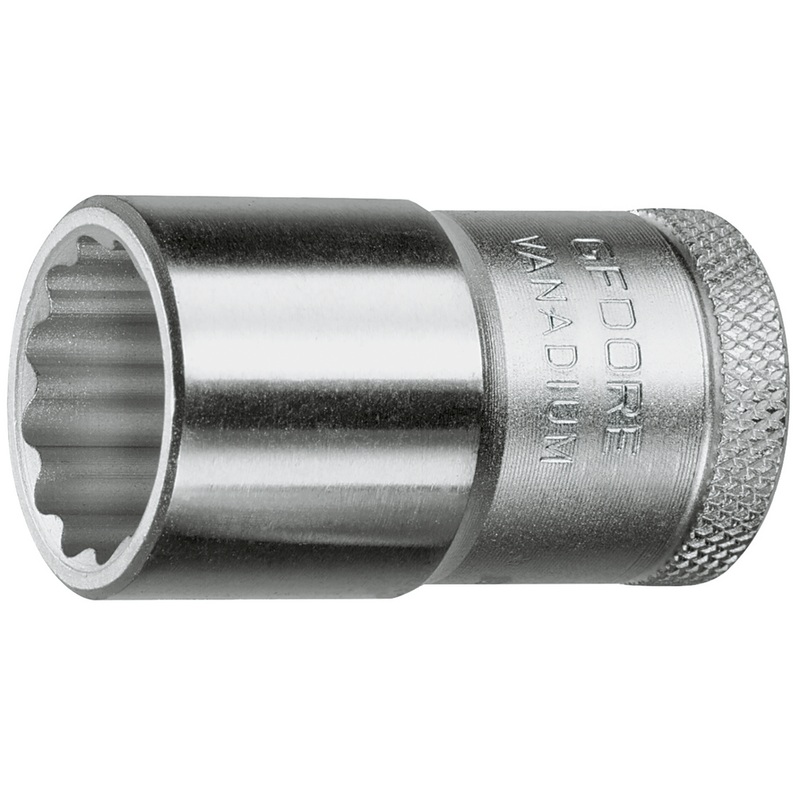

Gedore 1/2 in UD Profile Socket Wrench Insert, 17mm – GD 6134010

A Socket Wrench Insert is an interchangeable tool component designed to fit into a compatible socket wrench handle or torque driver. These inserts allow users to work with different fastener types or sizes using a single handle, maximizing efficiency and tool flexibility.

Features:

• Acc. to DIN 3124, ISO 2725-1
• Square drive as per DIN 3120 – C 12,5, ISO 1174, with ball retention groove
• Manually operated, with non-slip cross knurling
• Chrome vanadium steel 31CrV3, ground, chrome-plated
• Not standardized

Specifications:

• Square Drive Connector: 1/2″
• Square Drive Mount: 12.5mm
• Insert Diameter 1: 24mm
• Insert Diameter 2: 22.5mm
• Material: Chrome-Vanadium Steel 31CrV3
• Overall Weight: 0.15 lbs
• Operating Depth: 15mm
• Standard: DIN 3120 – C 12,5 ISO 1174 DIN 3124
• Surface: Polished, Chrome-Plated
• Overall Height: 24mm
• Overall Length: 40mm
• Overall Width: 24mm
• Width Across Flats 1: 17mm
• Working Length: 39.5mm
