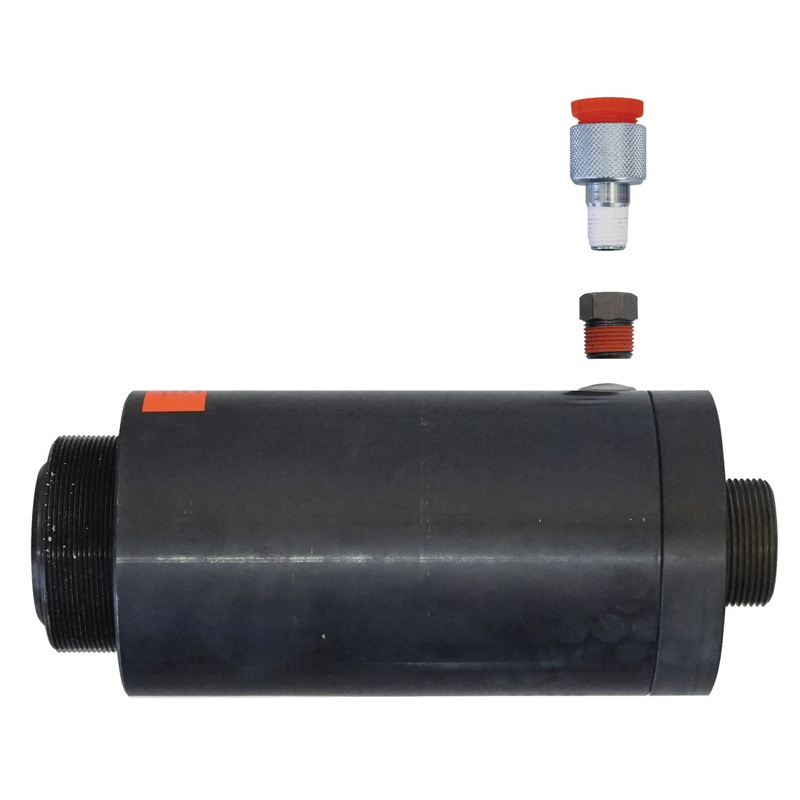

Gedore 2016893 Hydraulic Cylinder, 28T – GD KL-0040-2800

Due to its special design as a tubular cylinder, the KL-0040-2800 hydraulic cylinder (28 t) can be used to perform pulling and pushing operations in conjunction with the corresponding spindles available as accessories. Application: In conjunction with various GEDORE Automotive tools, the hydraulic cylinder KL-0040-2800 can be used for the removal and installation of drive shafts, wheel hubs, wheel bearings, silentblocs and suspension ball joints. In conjunction with the various GEDORE Automotive tools, the hydraulic cylinder can be used for the removal and installation of cardan shafts, wheel hubs, wheel bearings, silent bearings and support joints.

Features:

• The hollow piston cylinder can be used for pulling and pushing
• For removal and installation of cardan shafts, silent blocks, wheel bearings / wheel hubs and suspension joints

Specifications:

• Suitability: Universal
• Connection Thread (Press Side): 2-3/4 in – 16 UN
• Connection Thread (Pull Side): M42 x 2
• Connection Thread for Hydraulic Coupling: 3/8 in NPT
• Cylinder Diameter: 99mm
• Drive Type: Hydraulic
• Internal Thread: M24
• Length: 235 – 285mm
• Oil Pressure (Max.): 700 Bar
• Permissible Force (Max.): 285 kN (28T)
• Stroke: 50mm
• Weight: 23.15 lbs
• Country of Origin: Germany
