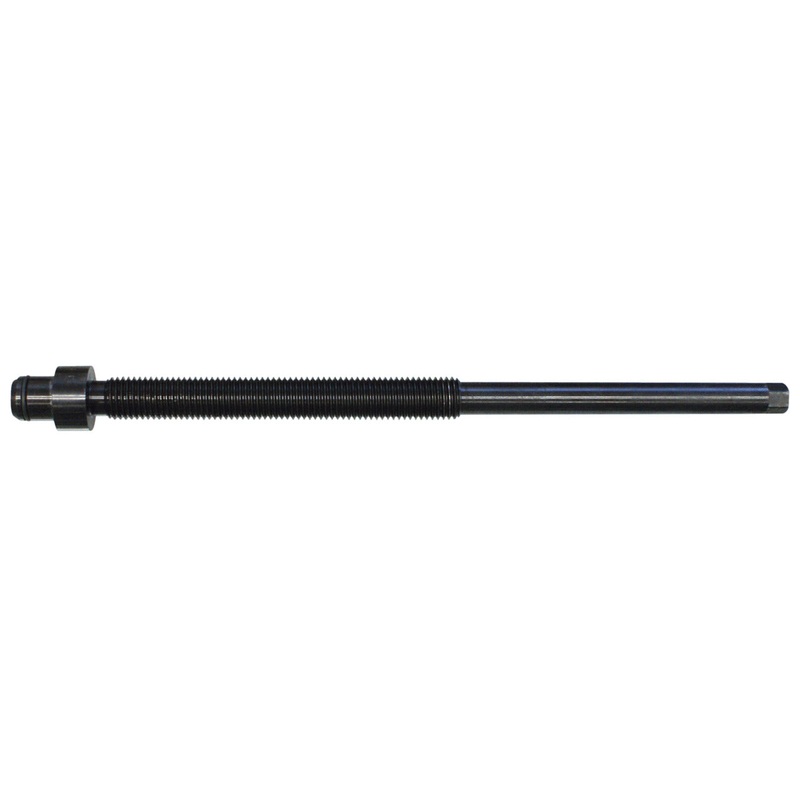

Gedore 2088185 Pressure Spindle, M20 x 350mm – GD KL-0039-1930

For the hydraulic drive of the KL-0039 series, in combination with hydraulic cylinder KL-0040-2500 and a press frame. For removing and installing bearings, bushings, etc.

Features:

• For the hydraulic drive of the KL-0039 series
• Only in combination with hydraulic cylinder KL-0040-2500 and a press frame

Specifications:

• Suitability: Universal
• Drive (Hex): 13mm
• Drive Type: Hydraulic
• Load (Max.): 20T
• Mounting Diameter: 20.5mm
• Outer Diameter: 30mm
• Spindle Length: 350mm
• Thread: M20
• Thread Length: 160mm
• Weight: 1.54 lbs
• Country of Origin: Germany
