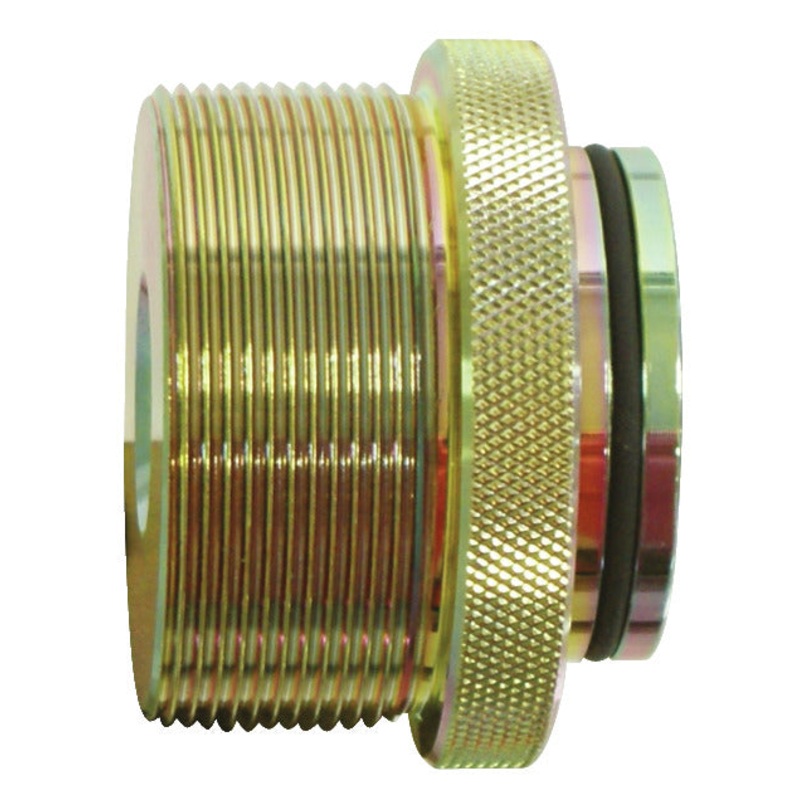

Gedore 2197596 Adaptor, 2-1/4 in – 14 UNS to Diameter 30mm – GD KL-0039-1105

This adaptor is needed when the various pressure-/support sleeves of the KL-0039. Series are to be used in conjunction with the press frames of the KL-0039. Series.

Features:

• For mounting the pressure / support sleeves or KL-0039
• In combination with a press frame of the KL-0039 series

Specifications:

• Suitability: Universal
• Drive Type: Hydraulic, Mechanical
• External Thread: 2-1/4 in – 14 UNS
• Inner Diameter: 20.5mm
• Inner Diameter (2): 30mm
• Length: 45mm
• Mounting Diameter: 46mm
• Outer Diameter: 65mm
• Weight: 1.54 lbs
• Country of Origin: Germany
