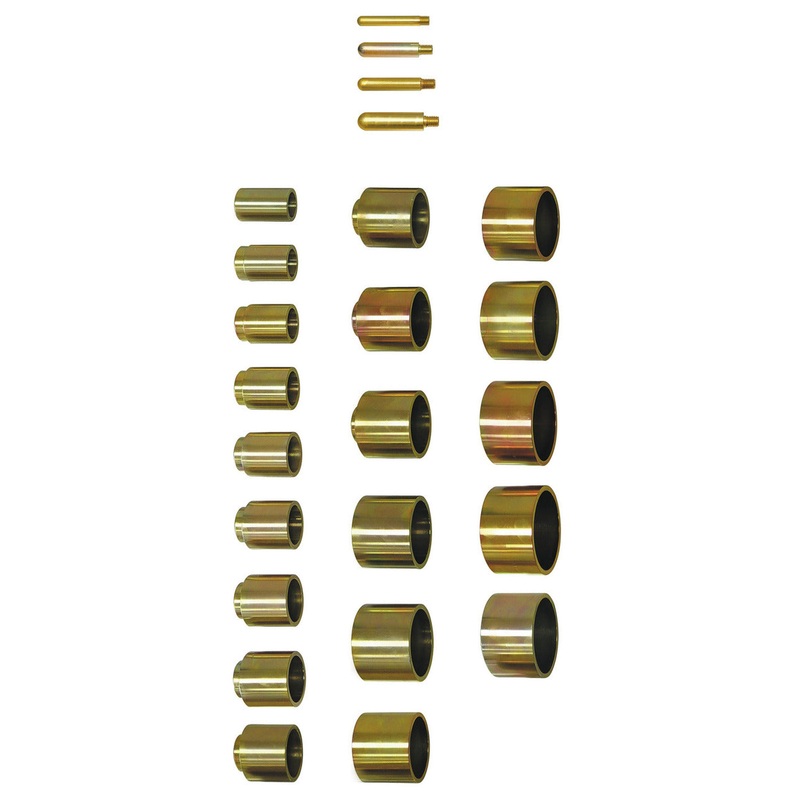

Gedore 2355418 Press/Support Sleeve Set, Short, Diameter 30 – 68mm – GD KL-0039-1601

Indispensable tool set for pressing in and pressing out silentblocs, shafts, bushings etc. The sleeves are used in conjunction with the tools of the KL-0039. Series. Includes guide bolts for proper fitting of silent blocks.

Features:

• For forcing out and forcing in of silent blocks, shafts, bushings, etc.
• Including guide bolts for proper fitting of silent blocks
• Additional drive parts required (mechanical or hydraulic)

Specifications:

• Suitability: Universal
• Drive Type: Hydraulic, Mechanical
• Inner Diameter of Sleeve (Max.): 60mm
• Inner Diameter of Sleeve (Min.): 22mm
• Length (Sleeve): 45mm
• Outer Diameter of Sleeve (Max.): 68mm
• Outer Diameter of Sleeve (Min.): 30mm
• Version: Short with Guide Bolts
• Weight: 12.13 lbs
• Country of Origin: Germany

Scope of Delivery:

1 x KL-0039-1610 – Guide bolt short 10mm dia., 1 x KL-0039-1612 – Guide bolt short 12mm dia., 1 x KL-0039-1614 – Guide bolt short 14mm dia., 1 x KL-0039-1616 – Guide bolt short 16mm dia., 1 x KL-0039-1630 – Pressure / support sleeve short 30 / 22mm dia., 1 x KL-0039-1632 – Pressure / support sleeve short 32 / 24mm dia., 1 x KL-0039-1634 – Pressure / support sleeve short 34 / 26mm dia., 1 x KL-0039-1636 – Pressure / support sleeve short 36 / 28mm dia., 1 x KL-0039-1638 – Pressure / support sleeve short 38 / 30mm dia., 1 x KL-0039-1640 – Pressure / support sleeve short 40 / 32mm dia., 1 x KL-0039-1642 -Pressure / support sleeve short 42 / 34mm dia., 1 x KL-0039-1644 – Pressure / support sleeve short 44 / 36mm dia., 1 x KL-0039-1646 – Pressure / support sleeve short 46 / 38mm dia., 1 x KL-0039-1648 – Pressure / support sleeve short 48 / 40mm dia., 1 x KL-0039-1650 – Pressure / support sleeve short 50 / 42mm dia., 1 x KL-0039-1652 – Pressure / support sleeve short 52 / 44mm dia., 1 x KL-0039-1654 – Pressure / support sleeve short 54 / 46mm dia., 1 x KL-0039-1656 – Pressure / support sleeve short 56 / 48mm dia., 1 x KL-0039-1658 – Pressure / support sleeve short 58 / 50mm dia., 1 x KL-0039-1660 – Pressure / support sleeve short 60 / 52mm dia., 1 x KL-0039-1662 – Pressure / support sleeve short 62 / 54mm dia., 1 x KL-0039-1664 – Pressure / support sleeve short 64 / 56mm dia., 1 x KL-0039-1666 – Pressure / support sleeve short 66 / 58mm dia., 1 x KL-0039-1668 – Pressure / support sleeve short 68 / 60mm dia.,
