Gedore 2447509 Drive Set for Hydraulic Cylinder, 89mm, M20 – GD KL-1002-1010

Is required when a GEDORE Automotive tool shall be driven by an alternative hydraulic cylinder from a foreign manufacturer (for example NIKE hydraulics), instead of the 17 t hydraulic cylinder KL-0040-2500.

Features:

• For driving GEDORE Automotive tools with a hydraulic cylinder from a foreign manufacturer (e.g. NIKE hydraulics)

Specifications:

• Suitability: Universal
• Drive Size: 13mm (waf)
• Drive Type: Hydraulic
• Load (Max.): 20T
• Mounting Diameter: 89mm
• Spindle Length: 590mm
• Thread Dimension: M20
• Thread Dimension 2: UNC 1 in – 8
• Thread Spindle Length: 180mm
• Thread Spindle Length (2): 290mm
• Weight: 6.39 lbs
• Country of Origin: Germany

Scope of Delivery:

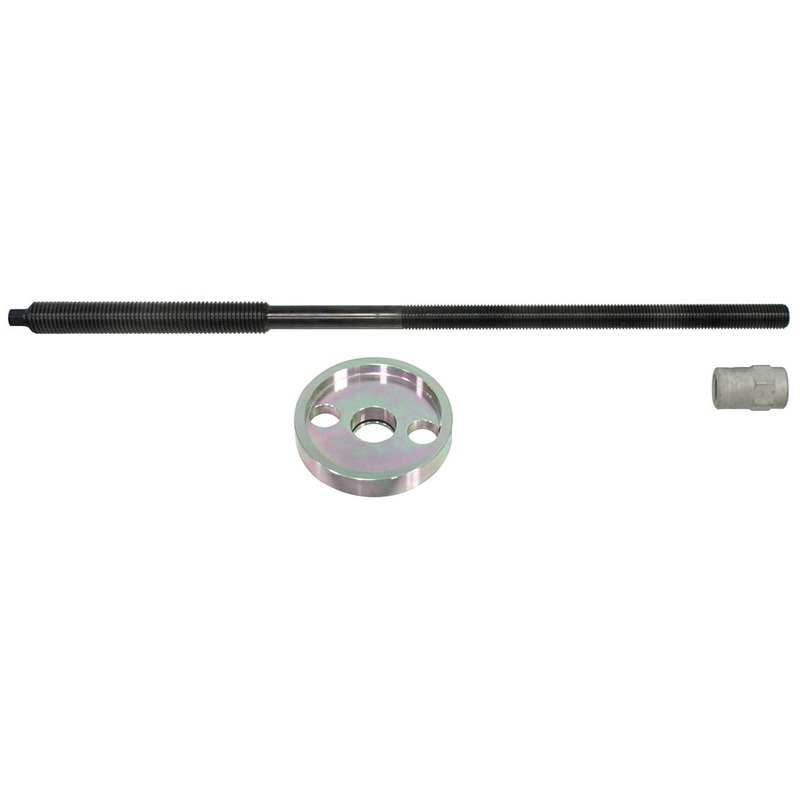

1 x KL-1002-1011 – Mounting adaptor with a diameter of 89mm, 1 x KL-1002-1012-1 – Pull spindle M20 to UNC 1″ – 8, 1 x KL-0040-3009 – Clamping nut M20
