Gedore 2478676 Hydraulic Hand Pump with Pressure Gauge, 28T – GD KL-0215-35 M28

The hydraulic hand pump KL-0215-35 M28 is used to drive the hydraulic cylinders KL-0040-2800. The hydraulic pressure and necessary force can be checked while operating the pump at pressure gauge KL-0040-2829 (supplied with the tool set). The pressure gauge features a tone scale which is specifically adapted to our KL-0040-2800 hydraulic cylinder (28 t). By means of the pressure gauge included in the kit with an additional ton scale that is matched to our hydraulic cylinder (28t), the hydraulic pressure and the required force can be controlled while working.

Features:

• Suitable for hydraulic cylinder KL-0040-2800
• Can be used as drive for a hydraulic cylinder
• With ton scale for controlled working

Specifications:

• Suitability: Universal
• Drive Type: Manual
• Weight: 16.54 lbs
• Working Pressure (Max.): 700 Bar
• Country of Origin: Taiwan

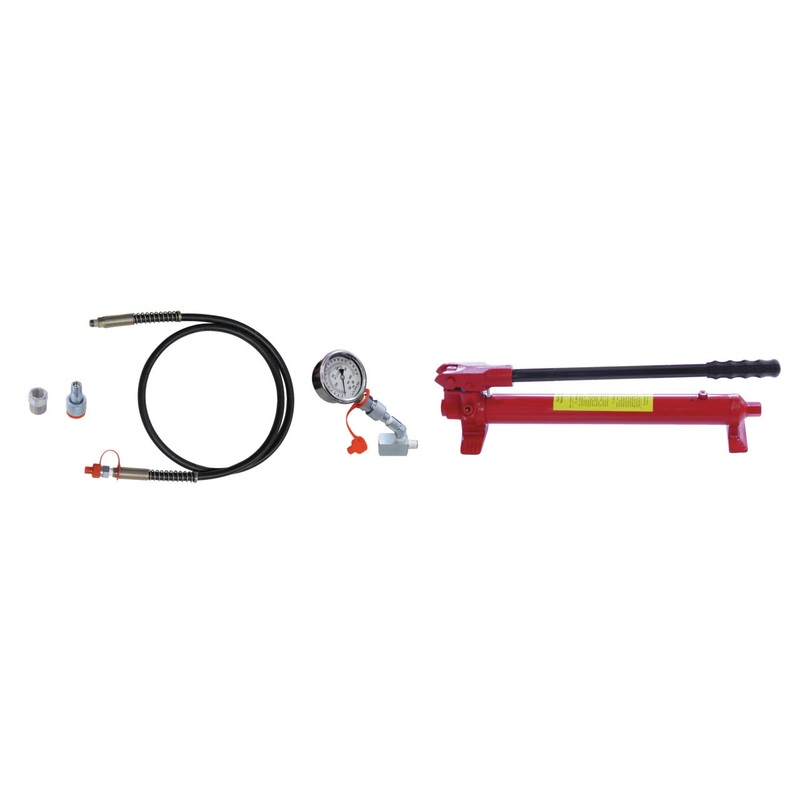

Scope of Delivery:

1 x KL-0215-33 – Hydraulic hand pump without hose, 1 x KL-0215-31 – Hydraulic hose 1.8 m with clutch half hose side, 1 x KL-0215-322 – Clutch half cylinder side 1/4″ NPT, 1 x KL-0040-2520 – Adaptor 3/8″ NPT to 1/4″ NPT, 1 x KL-0040-2829 – Pressure gauge
