Gedore 2478706 Hydraulic Pump, Pneumatic, 17T – GD KL-0215-36 M25

The air-operated hydraulic pump can be used as a drive for a hydraulic cylinder. Compressed air is used to drive the hydraulic pump. Operation is via a foot pedal with 3 settings for pumping, holding and unloading, Both hands are free to work.

Features:

• The air-driven hydraulic pump can be used to drive a hydraulic cylinder
• Operation is via a foot pedal with 3 settings for pumping, holding and unloading
• Both hands are free to work

Specifications:

• Suitability: Universal
• Drive Type: Pneumatic, Hydraulic
• Operating Pressure: 8 – 12
• Weight: 17.64 lbs
• Working Pressure (Max.): 700 Bar
• Country of Origin: Taiwan

Scope of Delivery:

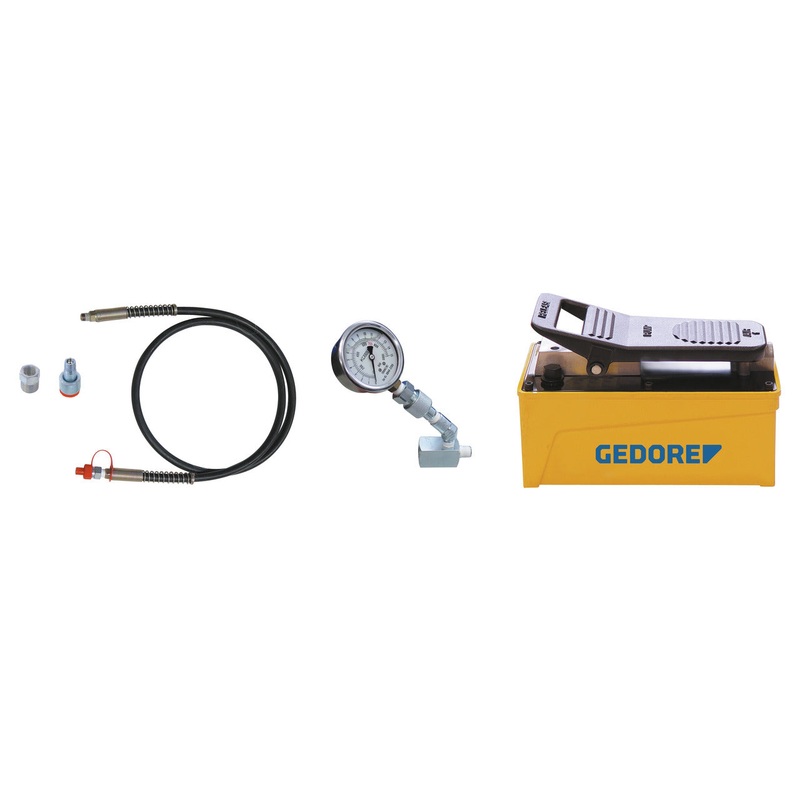

1 x KL-0215-360 – Hydraulic pump without hose, 1 x KL-0215-362 – Hydraulic hose 2.5 m with clutch half hose side, 1 x KL-0215-322 – Clutch half cylinder side 1/4″ NPT, 1 x KL-0040-2520 – Adaptor 3/8″ NPT to 1/4″ NPT, 1 x KL-0040-2529 – Pressure gauge
