Gedore 2480328 Spring Compressor Set with Protective Insert, Maximum Load 17.500 N – GD KL-0015 SP

Universal spring compressor with prolonged operating stroke The spring compressor KL-0015 SP, including spring retaining pairs KL-1510 SP size 1N and KL-1520 SP size 2N is suitable for replacing the right-hand coil springs and shock absorbers on passenger car chassis systems. Due to the anti-slip protective inserts, the spring is prevented from turning out and the sensitive spring surface coating from being damaged. Pros: Self-locking of the mobile holder / lifting carriage Released by the trade association Can also be used for conical springs Plastic protective inserts.

Features:

• Suitable for suspension strut axles with a spring diameter of 90 mm (inside) – 190 mm (outside)
• For replacing the right-hand coil springs and shock absorbers
• With anti-slip and surface protecting protective inserts
• Self-locking mechanism of the movable holder / lifting carriage
• Released by the trade association
• Can be also used for conical springs
• Suitable for suspension strut axles, including spring retaining pair with protective inserts size 1N and 2N for spring diameter of 90 mm (inside) – 190 mm (outside)
• Further spring retainers for spring diameters of 65 (inside) – 195 (outside) available

Specifications:

• Suitability: Universal
• Clamping Width (Max.): 345mm
• Clamping Width (Min.): 50mm
• Drive Size: 27mm (waf)
• Inner Spring Diameter (Min.): 90mm
• Load (Max.): 17.500 N
• Outer Spring Diameter (Max.): 190mm
• Weight: 24.03 lbs
• Working Travel: 295mm
• Country of Origin: Germany

Scope of Delivery:

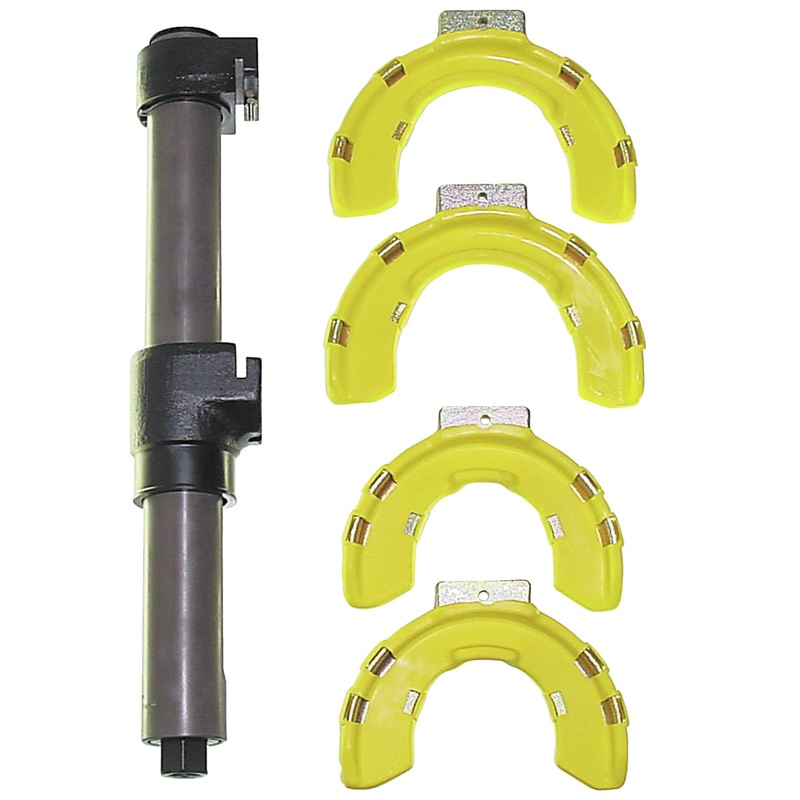

1 x KL-0015-100 – Compressor cylinder, 1 x KL-1510-SP – Spring retaining pair size 1N, 1 x KL-1520-SP – Spring retaining pair size 2N
