Gedore 2723190 Mechanical Drive Set, 22mm (waf) – GD KL-0174-831

The mechanical drive set KL-0174-831 enables GEDORE Automotive pressing devices, for example those consisting of press frame KL-0039-1140, KL-0326-1000 etc. and the sets of sleeves of the KL-0039 Series, to be driven mechanically.

Features:

• Suitable for press frame KL-0039-1140 and KL-0326-1000
• For a mechanical drive of the press frame in connection with the KL-0039 series

Specifications:

• Suitability: Universal
• Drive Size: 22mm (waf)
• Drive Type: Mechanical
• Spindle Length: 260mm
• Thread Dimension: M20 x 2
• Thread Dimension 2: 2-1/4 in – 14 UNS
• Thread Spindle Length: 210mm
• Weight: 4.41 lbs
• Country of Origin: Germany

Scope of Delivery:

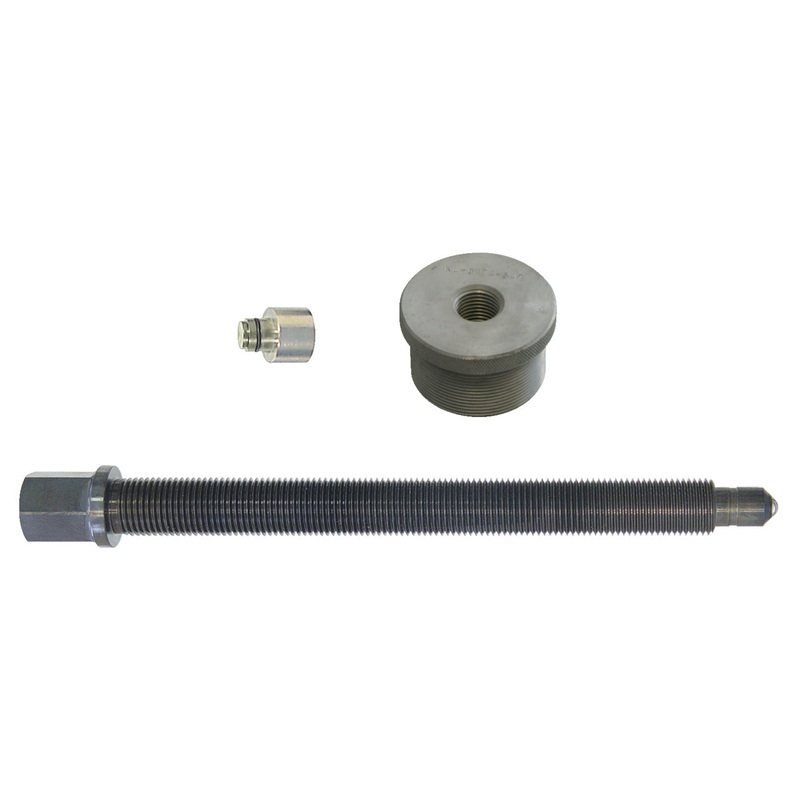

1 x KL-0174-620 – Spindle M20 x 2 x 230, 1 x KL-0174-547 – Adaptor 21/4″-14 UNS to M20 x 2, 1 x KL-0174-853 -Thrust piece for mechanical spindle
