Gedore 2727978 Silentblock Toolkit, Diameter 40mm – GD KL-1002-221

The thrust piece / sleeve kit KL-1002-221 is suitable for a quick, safe and professional removal and installation of silent blocks. The removal and installation of the silentblocs can be carried out on a work bench or in-situ on the vehicle if space conditions allow.

Features:

• Suitable for silent blocks with a diameter of 40 mm (bead diameter 50 mm)
• For removal and installation of silent blocks
• Can be performed on the workbench and on the vehicle
• Additional drive parts required
• Suitable for silent blocks with a diameter of 40 mm (bead diameter 50 mm), e.g. Renault silent blocks (no. 50 10 294 961 and 50 00 448 404) on Renault Midlum / D, 4×4 Midlum / D leaf spring eyes, silent blocks, etc.

Specifications:

• Suitability: Universal, Renault
• Drive Type: Hydraulic
• Outer Diameter (Fitted): 40mm
• Weight: 7.06 lbs
• Country of Origin: Germany

Scope of Delivery:

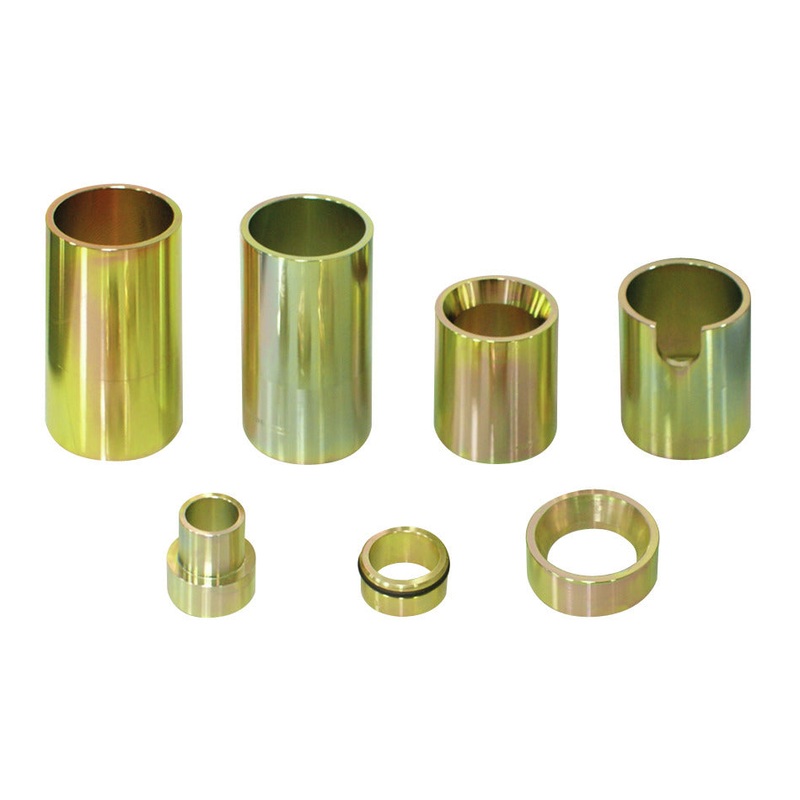

1 x KL-0039-1762 – Pressure / support sleeve long 62mm dia., 1 x KL-0039-1760 – Pressure / support sleeve long 60mm dia., 1 x KL-1002-2201- Thrust piece, 1 x KL-1002-2202-1 – Support sleeve long 40mm dia., 1 x KL-1002-2202-2 – Support sleeve long 40mm dia., 1 x KL-1002-2203 – Centring ring 40mm dia., 1 x KL-1002-2204 – Support sleeve short 62mm dia.,
