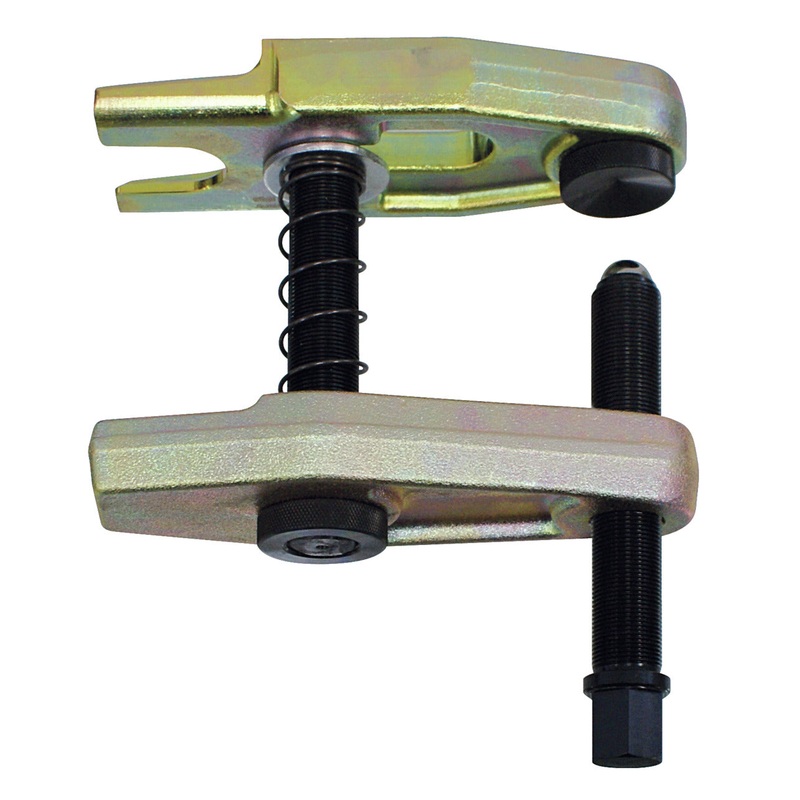

Gedore 2822997 Ball Joint Extractor, Size 3, 40mm – GD KL-0165-36

The KL-0165-36 ball joint extractor is the ideal tool for separating ball joint connections in suspension and steering systems.

Features:

• Suitable for the push-rod at the deflection lever of the front axle at MAN bus A21
• For breaking ball joint connections on axle and steering systems
• Variable due to exchangeable forks
• Especially suitable for ball joints on the pitman arm on Mercedes-Benz or Setra buses, e.g. MB Travego RHD L (O 580) and Setra S 417 UL. (Fork opening a=42 mm)

Specifications:

• Suitability: Universal, MAN
• Fork Opening: 40mm
• Fork Width: 80mm
• Length: 200mm
• Size: Gr. 3
• Size (waf): 24mm
• Spindle: M24 x 1.5 x 135
• Weight: 12.35 lbs
• Country of Origin: Germany

Scope of Delivery:

1 x KL-0165-300 – Basic tool without fork (spindle M24 x 1.5), 1 x KL-0165-3601 – Fork – a=40mm – e=80mm – d=200mm
