Gedore 2915316 Pull Spindle Set with Quick-Action Clamping Nut, Mechanical, M10 x 1.25 – GD KL-0039-2210

The pull spindle with shoulder nut and quick-action clamping nut is used in conjunction with the tools of the KL-0039. Series to allow bearings, bushings, joints etc. to be removed and installed mechanically. Thanks to its special design, the quick-action clamping nut can be adjusted simply by sliding it on the pull spindle without any rotational movement. This allows for short assembly/clamping times as well as quick and easy adjustment and simple operation of the tool. Thanks to its special design, the quick-action clamping nut can be adjusted simply by sliding it on the pull spindle without any rotational movement. This allows for short assembly/clamping times as well as quick and easy adjustment and simple operation of the tool. To prevent the quick-release nut from opening under load, secure it by the collar together with a suitable pressure/support sleeve, an adaptor, or a retaining ring.

Features:

• For the mechanic drive of the KL-0039 series
• High time saving due to quick-clamping function

Specifications:

• Suitability: Universal
• Drive (Hex): 7mm
• Drive (Nut): 22mm
• Drive Type: Mechanical
• Load (Max.): 5T
• Spindle Length: 395mm
• Thread: M10 x 1.25
• Thread Length: 370mm
• Weight: 0.86 lbs
• Country of Origin: Germany

Scope of Delivery:

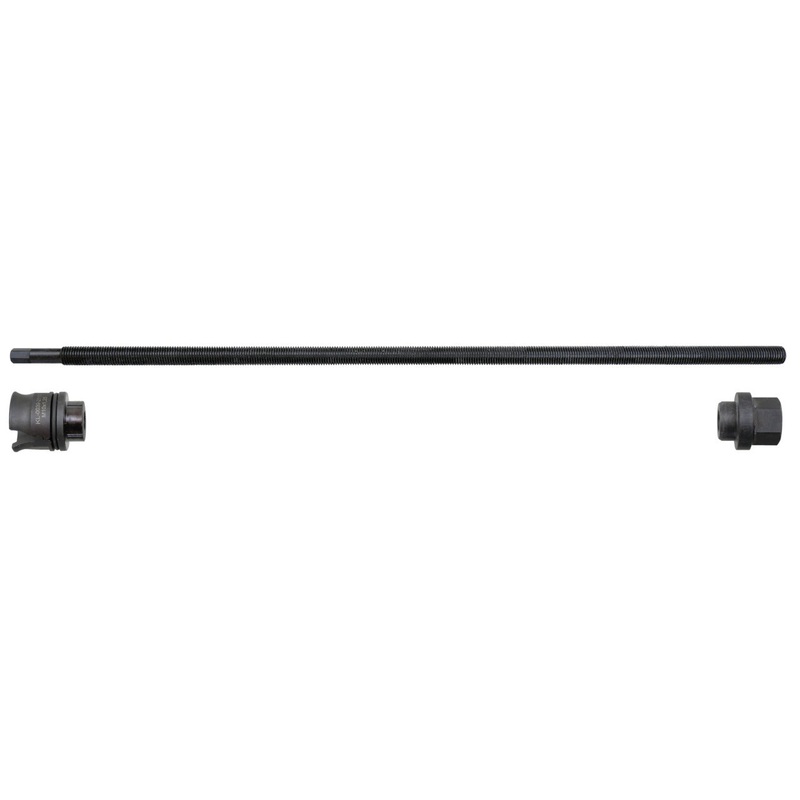

1 x KL-0039-2010-1 – Pull spindle M10 x 1.25, 1 x KL-0039-1910-2 – Collar nut M10 x 1.25, 1 x KL-0039-2110-2 – Quick-clamping nut M10 x 1.25
