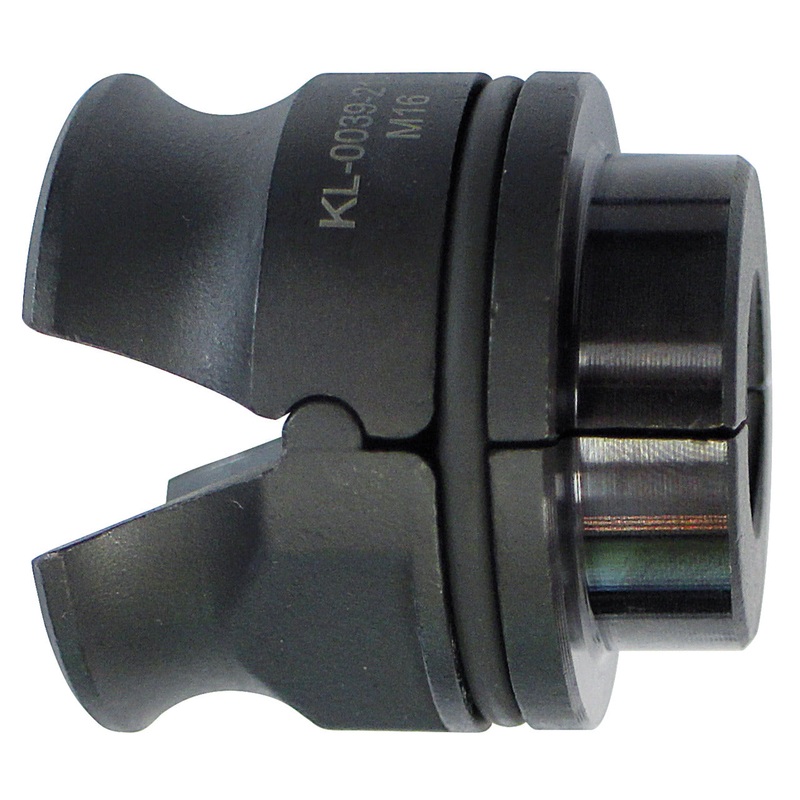

Gedore 2915367 Quick-Action Clamping Nut, M12 – GD KL-0039-2112-2

The special design of the quick-release nut allows the adjustment on the draw spindle without a rotary movement but only by sliding. This allows for short assembly/clamping times, as well as quick and easy adjustment and simple operation of the tool. To prevent the quick-release nut from opening under load, secure it by the collar together with a suitable pressure/support sleeve, an adaptor, or a retaining ring.

Features:

• For the hydraulic drive of the KL-0039 series
• High time saving due to quick-clamping function
• Only in combination with a suitable spindle

Specifications:

• Suitability: Universal
• Drive (Hex): 27mm
• Drive Type: Hydraulic, Mechanical
• Length: 35mm
• Mounting Diameter: 20.5mm
• Outer Diameter: 30mm
• Thread: M12
• Weight: 0.22 lbs
• Country of Origin: Germany
