Gedore 2915529 Pull Spindle Set with Quick-Action Clamping Nut, Hydraulic, M14 – GD KL-0039-2114

The pull spindle with quick-action clamping nut is used in conjunction with the tools of the KL-0039. Series and the KL-0040-2500 hydraulic cylinder (17t) to allow bearings, bushings, joints etc. to be removed and installed hydraulically. Thanks to its special design, the quick-action clamping nut can be adjusted simply by sliding it on the pull spindle without any rotational movement. This allows for short assembly/clamping times as well as quick and easy adjustment and simple operation of the tool. For removing and installing bearings, bushings, etc. Thanks to its special design, the quick-action clamping nut can be adjusted simply by sliding it on the pull spindle without any rotational movement. This allows for short assembly/clamping times as well as quick and easy adjustment and simple operation of the tool. To prevent the quick-release nut from opening under load, secure it by the collar together with a suitable pressure/support sleeve, an adaptor, or a retaining ring.

Features:

• For the hydraulic drive of the KL-0039 series
• High time saving due to quick-clamping function of the nut
• Only in combination with hydraulic cylinder KL-0040-2500

Specifications:

• Suitability: Universal
• Drive (Hex): 13mm
• Drive Type: Hydraulic
• Load (Max.): 9T
• Spindle Length: 590mm
• Thread: M14
• Thread (2): M20
• Thread Length: 210mm
• Thread Length (2): 300mm
• Weight: 2.87 lbs
• Country of Origin: Germany

Scope of Delivery:

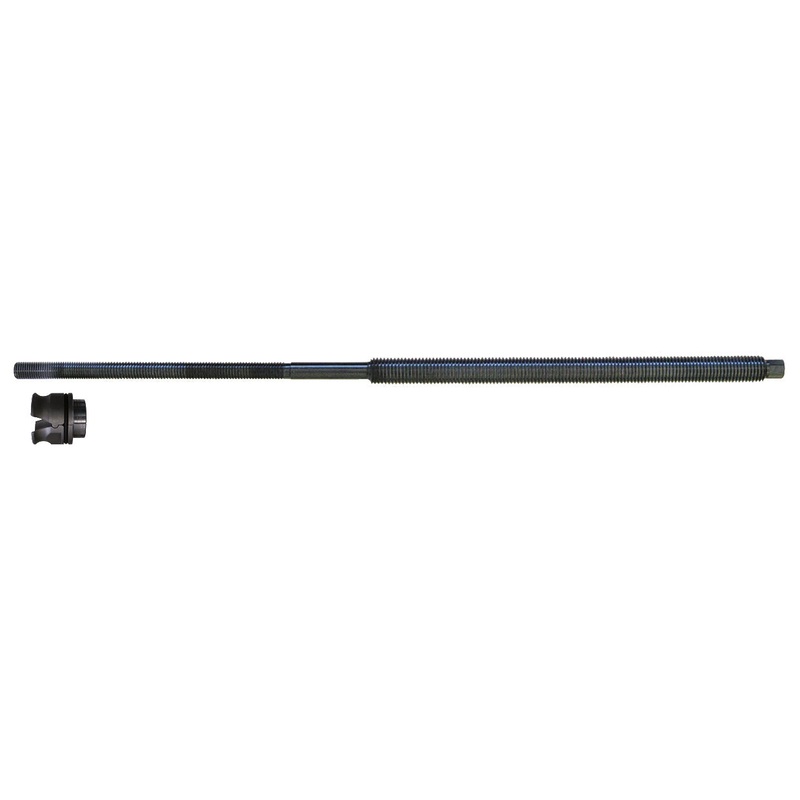

1 x KL-0039-2114-2 – Quick-clamping nut M14, 1 x KL-0039-1914-1- Pull spindle M14
