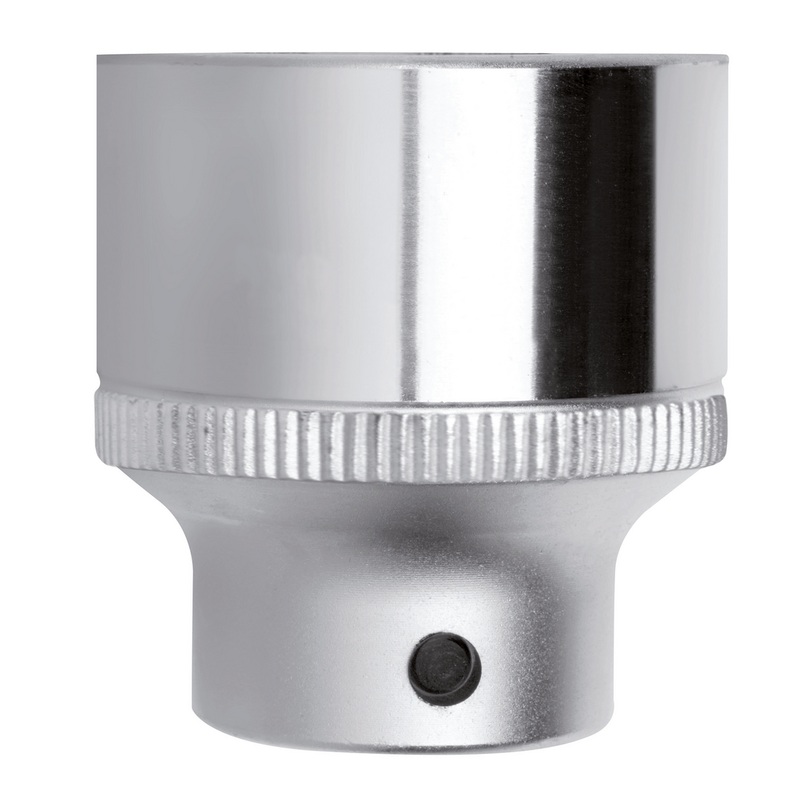

Gedore 3/4 in 6-Point Socket Wrench Insert, 24mm, Length 52mm – GD 3300494

A Socket Wrench Insert is an interchangeable tool component designed to fit into a compatible socket wrench handle or torque driver. These inserts allow users to work with different fastener types or sizes using a single handle, maximizing efficiency and tool flexibility.

Features:

• Hand operated, knurled grip
• Matt satin chrome-plated on the drive side, driven end brightly polished
• Acc. to DIN 3124, ISO 2725-1
• Square drive as per DIN 3120 – D 20, ISO 1174, with drill hole for locking pin

Specifications:

• Square Drive Connector: 3/4″
• Square Drive Mount: 20mm
• Insert Diameter 1: 34mm
• Insert Diameter 2: 36mm
• Material: Chrome-Vanadium Steel
• Overall Weight: 0.49 lbs
• Standard: DIN 3124 ISO 2725-1 DIN 3120 – D 20 ISO 1174
• Surface: Matt Chrome-Plated (input side), Bright Polished (output side)
• Overall Height: 36mm
• Overall Length: 52mm
• Overall Width: 36mm
• Width Across Flats 1: 24mm
• Working Length: 51mm
