Gedore 3069680 Wheel Hub Puller Set, Ford, Type M, M14 – GD KL-0174-371

Included in KL-0174-370 tool set. This is necessary, for example, when you replace the wheel bearing and the brake disc on the rear axle, as these are located behind the wheel hub. All work can be carried out directly on the vehicle within a few minutes.

Features:

• Fits with the rear and front axle on Ford Transit/Tourneo (year of manufacture 2000-2006 / 2006-2014) with front-wheel drive and a wheel hub hole circle diameter of 160 mm
• For professionally force off stuck wheel hubs with brake disc from the stub axle (rear axle)
• For pushing out a stuck cardan shaft from the wheel hub (front axle)
• Required when the wheel bearing or the brake discs (rear axle) are being replaced
• Additional drive parts required
• Fits with the rear and front axle [3] on Ford Transit/Tourneo (year of manufacture 2000-2006 / 2006-2014) [3 – with front-wheel drive] and a hole circle diameter of 160 mm at the wheel hub

Specifications:

• Suitability: Ford
• Drive Type: Hydraulic
• Mounting Thread: M14
• Version: Type M
• Weight: 18.96 lbs
• Wheel Stud Circles: 100 – 170mm
• Country of Origin: Germany

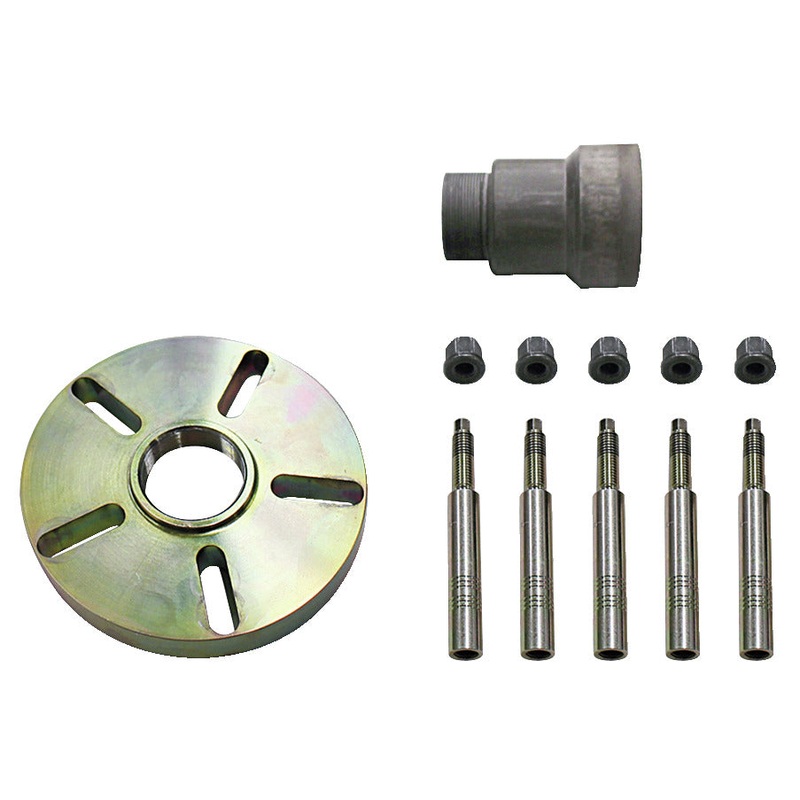

Scope of Delivery:

1 x KL-0174-330 – Perforated disc size 3, 5 x KL-0174-767 – Pull bolt type M, M14 (l=100), 5 x KL-0174-701 – Hexagon collar nut M14, 1 x KL-0174-572 – Adaptor 21/4″ to 2-3/4″, 28 t
