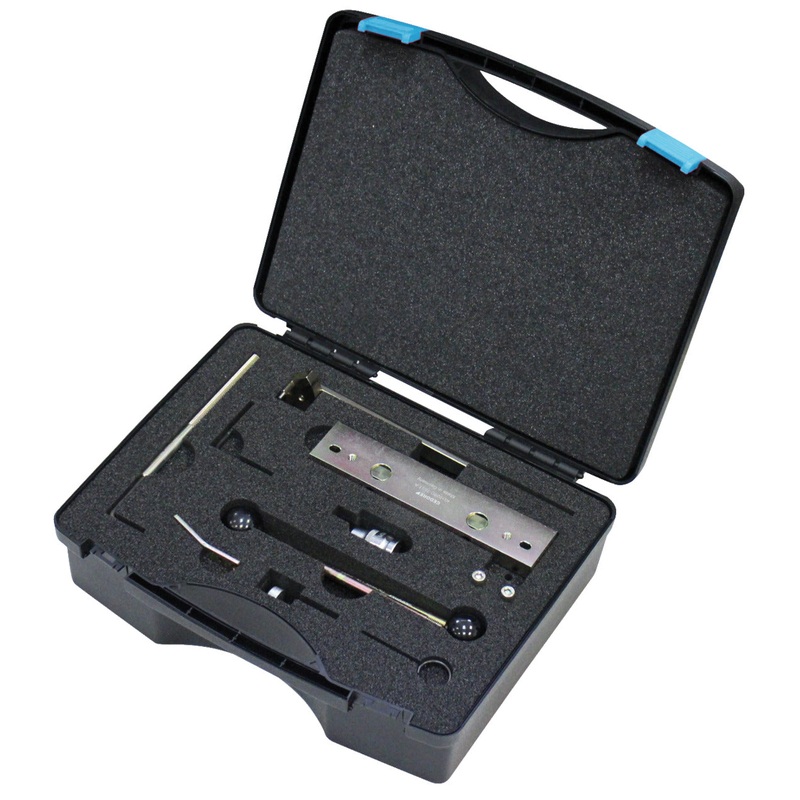

Gedore 3083985 Locking Toolkit, VW-Audi (2.0 FSI / TSI / TFSI), Width 340mm – GD KL-0280-765 KA

Designed for the locking/positioning of camshafts, as well as of the timing belt, auxiliary drive belt (V-ribbed belt) and timing chain tensioners. The kit also includes tools to loosen/tighten camshaft phasing units. An indispensable tool set when replacing a timing belt/timing chain or performing an engine repair. An indispensable tool set when replacing a timing belt/timing chain or performing an engine repair.

Features:

• Fits with VW-Audi 2.0 FSI/ TSI/ TFSI petrol engines
• For locking the camshafts and the toothed belt, V-ribbed belt and timing chain tensioning unit
• For locking, loosening and tightening the camshaft phaser
• Fits with VW-Audi, Seat, and Skoda with 2.0 FSI / TSI / TFSI petrol engines
• Installed on, for example, Audi A3 / S3 (8P), A4 (8E, 8H), A6 (4B, 4F), TT (8J), Seat Altea/Altea XL (5P), Toledo III (5P), Leon (1P), Exeo (3R), Skoda Octavia II (1Z), VW Eos (1F), Golf (1K), Golf Plus (5M), Jetta (1K), Passat (3C), Touran (1T), Scirocco (137, 138), KTM X-Bow

Specifications:

• Suitability: VW, Audi, Seat, Skoda
• Depth: 275mm
• Height: 123mm
• Motor Type: Petrol
• Storage: Case
• Weight: 5.51 lbs
• Width: 340mm
• Country of Origin: Germany

Scope of Delivery:

1 x KL-0180-3024 – Locking pin with a diameter of 24mm, 1 x KL-0280-16 – Holding sheet, 1 x KL-0280-221 – Locking mandrel with a diameter of 4mm, angled, 1 x KL-0280-222 – Locking mandrel with a diameter of 4mm, angled, 1 x KL-0280-6013 A – Clamping screw with sleeve, 1 x KL-0280-7651 A – Locking tool camshaft, 1 x KL-0284-91 A – Toothed belt socket spanner, 1 x KL-0286-11 – Guide bolt kit, 1 x KL-4051-3010 – in-hex socket, 1 x KL-0280-7659 – Plastic case
