Gedore 3279898 Clutch Aligner Kit, HGV, 23 – 51mm – GD KL-0069-67 E

The clutch centring tool set enables the quick and professional centring of clutch discs. Centring is performed through the guide bearing in the crankshaft.

Features:

• Universal fit for commercial vehicles with single and double disc clutches, with a hub diameter of 23 – 51 mm
• Enables a quick and professional centring of clutch discs
• The centring is performed via the guide bearing in the crankshaft
• Universal fit for transporters, commercial vehicles, and agricultural machinery with single and double disc clutches, with a hub diameter or 23 – 51 mm

Specifications:

• Suitability: Universal, Mercedes
• Clamping Range (Max.): 51mm
• Clamping Range (Min.): 23mm
• Depth: 215mm
• Height: 70mm
• Storage: Foam Insert
• Weight: 12.13 lbs
• Width: 321mm
• Country of Origin: Germany

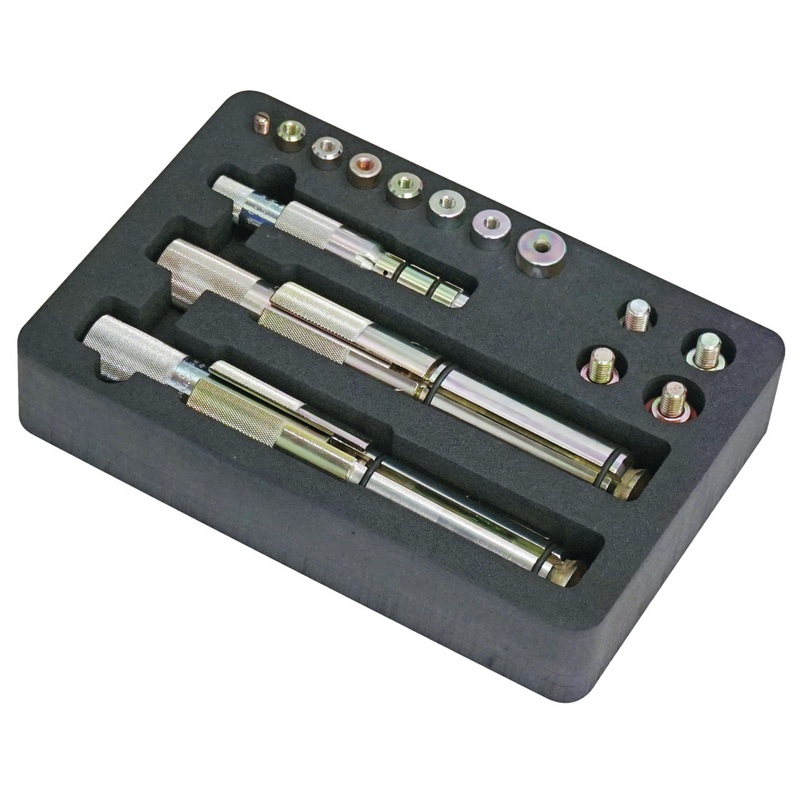

Scope of Delivery:

1 x KL-0069-710 R – Clutch centring mandrel with a diameter of 23-35mm, 1 x KL-0069-610 A – Clutch centring mandrel size 1 with a diameter of 36-44mm, 1 x KL-0069-620 A – Clutch centring mandrel size 2 with a diameter of 42-51mm, 1 x KL-0069-5011 – Threaded pin M8 x 35mm, 1 x KL-0069-7001 – Centring sleeve with a diameter of 15mm, 1 x KL-0069-7002 – Centring sleeve with a diameter of 16mm, 1 x KL-0069-7003 – Centring sleeve with a diameter of 17mm, 1 x KL-0069-7004 – Centring sleeve with a diameter of 18mm, 1 x KL-0069-7005 – Centring sleeve with a diameter of 19mm, 1 x KL-0069-7006 – Centring sleeve with a diameter of 20mm, 1 x KL-0069-7008 – Centring sleeve with a diameter of 25mm, 1 x KL-0069-6001 – Centring piece with a diameter of 20mm, 1 x KL-0069-6002 – Centring piece with a diameter of 25mm, 1 x KL-0069-6003 – Centring piece with a diameter of 27mm, 1 x KL-0069-6004 – Centring piece with a diameter of 30mm, 1 x KL-0069-1090-1 – Foam insert
