Gedore 3282708 Shaft Seal Installation Toolkit, Diameter 175mm – GD KL-1025-175 A

The shaft seal presser KL-1025-175 A is required for a professional assembly of shafts seals on Mercedes ACTROS and ATEGO rear axles. Note: The rings KL-1025-1752 A and KL-1025-1753 A are required for the rear axle series 746.21 and 148.59 with double sealing, The rings KL-1025-1754 and KL-1025-1755 are required for the AP axles.

Features:

• Suitable for Mercedes Actros and Atego rear axle shaft seal rings
• For a professional assembly of shaft seals
• Also for rear axles with double sealing
• Also for AP axles
• Suitable for Mercedes ACTROS and ATEGO rear axle shaft seal rings (including ACTROS with 11.5 t, 13 t and 16 t AP axles)
• E.g. ACTROS rear axle MB no. – 746.217_O / – 770.001_F / – 771.0_F / – 771.1_F / – 740.8_S / – 746.210_S / – 748.2_S / – 748.7_S / – 746.213_S / – 741.71_S / – 746.21_S / – 746.301_S / – 748.59_S and ATEGO 9 t rear axle MB no. – 770.003_F, – 770.002_F, – 770.000_F

Specifications:

• Suitability: Mercedes
• Diameter: 175mm
• Length: 233mm
• Weight: 18.96 lbs
• Width: 195mm
• Country of Origin: Germany

Scope of Delivery:

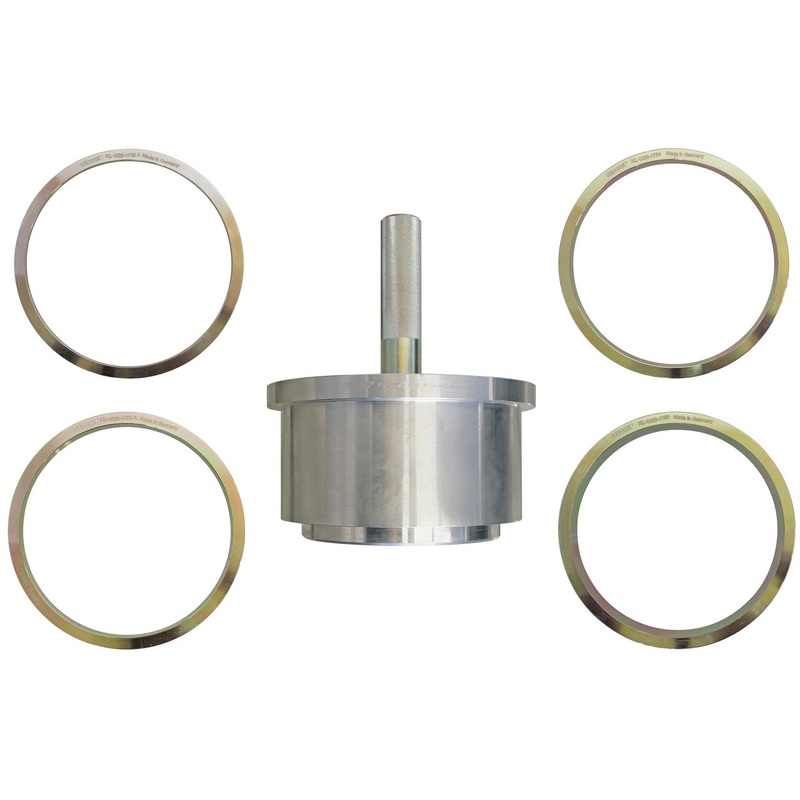

1 x KL-1025-1751 – Shaft seal presser 175mm dia., 1 x KL-1025-1752 A – Ring 7.5mm, 1 x KL-1025-1753 A – Ring 17.5mm, 1 x KL-1025-1754 – Ring 20mm, 1 x KL-1025-1755 – Ring 36mm
