Gedore 3290255 Mechanical Drive Kit for Wheel Hubs, 19mm (waf) – GD KL-0039-801 C

Mechanical drive for the wheel hub and wheel bearing tool kits KL-0039. series, KL-0041-4. series as well as KL-0041-380 A. The mounting adaptor with integrated ball bearing, which is included in the kit, enables simple and force-optimized working. The special quick-release nut allows the adjustment on the draw spindle without a rotary movement but only by sliding. This allows for short assembly/clamping times, as well as quick and easy adjustment and simple operation of the tool. To drive KL-0041-380 A, only the spindle – KL-0039-2030, and the mounting adaptor – KL-0039-1011 are required.

Features:

• Mechanical drive for tool kits of the KL-0039 series, KL-0041-4. series and KL-0041-380A
• Smooth drive due to adaptors with ball bearing
• High time saving due to quick-clamping function of the nut

Specifications:

• Suitability: Universal
• Drive Size: 19mm (waf)
• Drive Type: Mechanical
• Load (Max.): 20T
• Spindle Length: 420mm
• Thread: M20
• Thread Spindle Length: 310mm
• Weight: 5.51 lbs
• Country of Origin: Germany

Scope of Delivery:

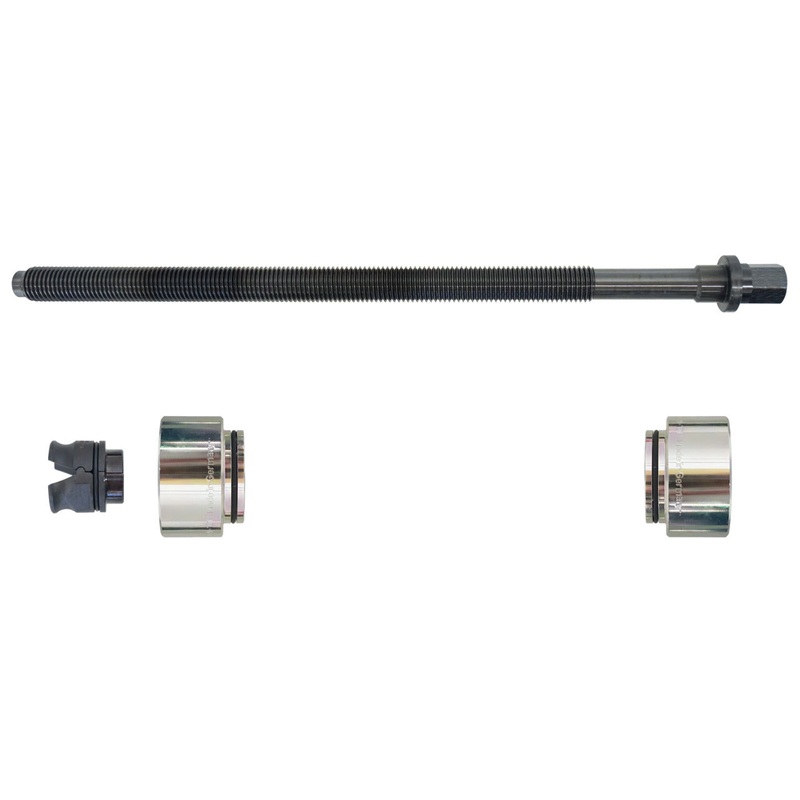

1 x KL-0039-2030 – Pull spindle M20, 1 x KL-0039-2120-2 – Quick-clamping nut M20, 1 x KL-0039-1002 – Mounting adaptor for clamping nut M20 with O-ring, 1 x KL-0039-1011 – Mounting adaptor for mechanical spindle
