Gedore 3411702 Reset Toolkit for Double Clutch, Width 494mm – GD KL-0500-71 KA

The reset toolkit upgrades the base toolkit for double clutch KL-0500-80 K (LuK 400 0418 10). The toolkit is designed to professionally reset/re-enable the transport lock of a double clutch that has been removed and is to be re-installed, for example, after repairs to the gearbox. Required if the double clutch is to be reused after removal. Note: A new double clutch is usually equipped with a transport lock. Resetting is therefore not necessary.

Features:

• Fits Renault and Ford passenger cars with 6-speed double clutch gearboxes DC4 or DPS6
• For a professional resetting of the transport lock
• Required when the clutch shall be reused after removal
• Only in combination with the KL-0500-80 KA basic tool kit
• Fits Renault and Ford passenger cars with 6-speed double clutch gearboxes DC4 (Renault) and DPS6 (Ford)
• A new double clutch is usually equipped with a transport lock. Resetting is therefore not necessary

Specifications:

• Suitability: Renault, Ford
• Depth: 402mm
• Height: 156mm
• Storage: Case
• Weight: 22.05 lbs
• Width: 494mm
• Country of Origin: Germany

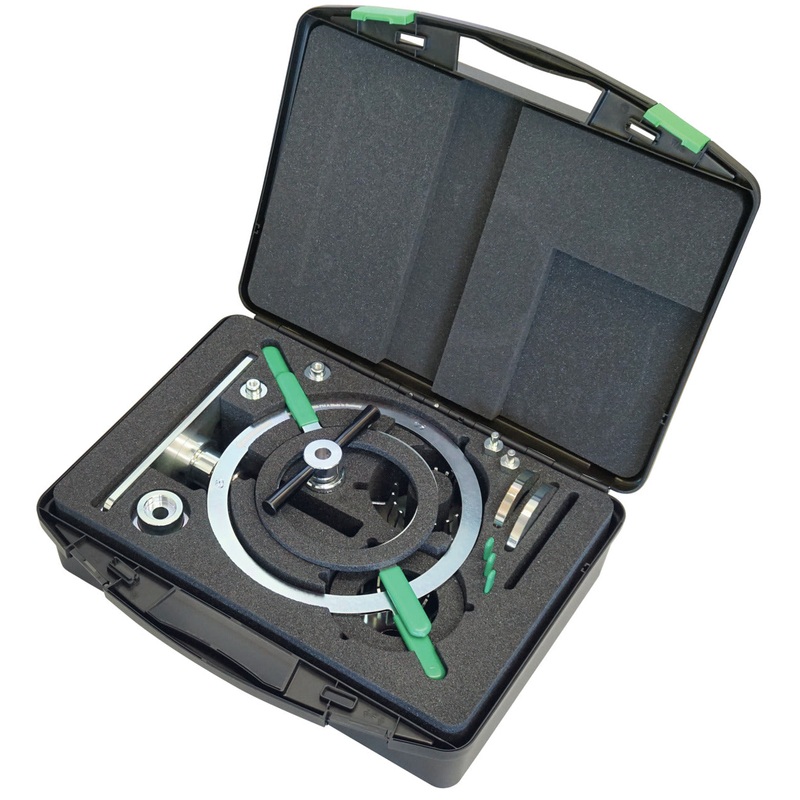

Scope of Delivery:

1 x KL-0500-7110 – Thrust ring with a diameter of 85mm, 1 x KL-0500-7111 – Thrust ring with a diameter of 10mm, 1 x KL-0500-712 – Clamping piece kit, 1 x KL-0500-713 – Mounting adaptor with handle, 1 x KL-0500-714 – Reset tool K2, 1 x KL-0500-715 – Reset tool K1, 1 x KL-0500-716 – Thrust piece with a diameter of 115mm, 1 x KL-0500-717 – Thrust piece with a diameter of 131mm, 1 x KL-0500-7190 A – Plastic case
