Gedore 3417425 Locking Toolkit, Ford (1.0 EcoBoost), Width 391mm – GD KL-0680-30 K

For locking the camshafts, timing belt tensioner, crankshaft, and flywheel. For adjusting the camshaft phasers. For pressing in the crankshaft seal ring. Required, for example, when changing the timing belt and repairing the engine.

Features:

• Fits with Ford 3-cylinder 1.0 EcoBoost petrol engines
• For locking the camshaft, crankshaft, toothed belt tensioning unit and the flywheel
• For adjusting the camshaft phaser
• For forcing in the camshaft seal ring
• Installed in, e.g. Ford Fiesta VI (CB1, CCN), Focus III, Focus IV (HM, HN, HP), B-Max (JK), Grand C-Max + C-Max II (DXA/CB7, DXA/CEU), Transit + Tourneo Connect + Grand Tourneo Connect (V408) etc.

Specifications:

• Suitability: Ford
• Depth: 308mm
• Height: 134mm
• Motor Type: Petrol
• Storage: Case
• Weight: 8.82 lbs
• Width: 391mm
• Country of Origin: Germany

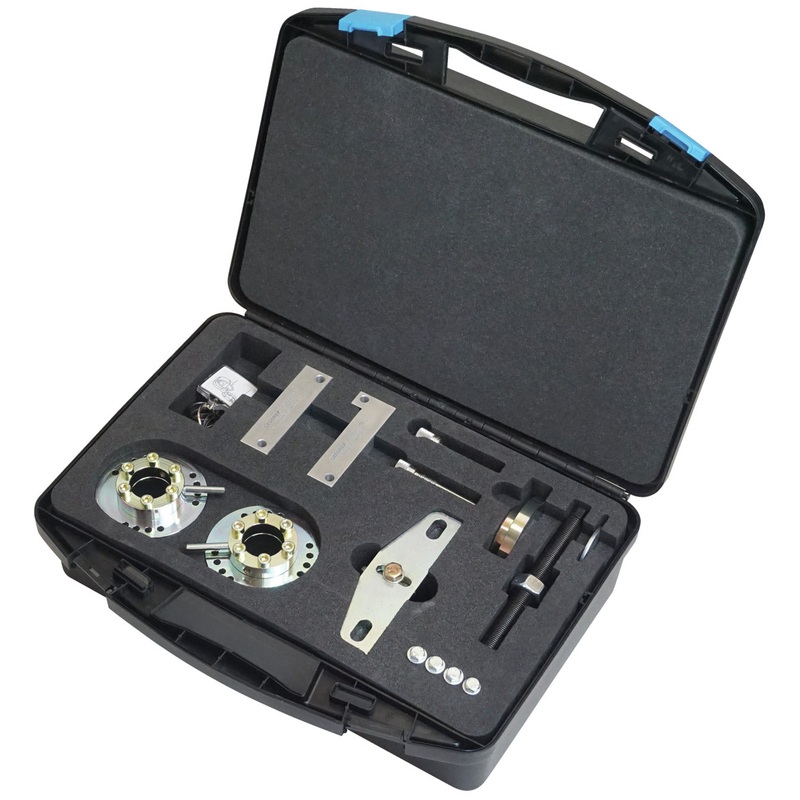

Scope of Delivery:

1 x KL-0680-3001 – Locking mandrel for crankshaft with a diameter 7.9mm, 1 x KL-0680-2202 A – Locking mandrel diameter 4.5mm, 1 x KL-0680-301 – Adjustment tool camshaft phaser, 1 x KL-0680-302 – Holding device for flywheel, 1 x KL-0680-303 – Mounting tool for shaft seal, 1 x KL-0680-304 – Locking tool for camshaft, 1 x KL-0180-30 B – Locking pin kit 0.8mm – 2.6mm, 1 x KL-0680-3090 – Foam insert, 1 x KL-4990-9374 – Plastic case
