Gedore 3420140 Upgrade Kit, Siemens-Injector, M27 x 1 – GD KL-0186-1282 A

By using the supplementary kit, the injector extractor – KL-0186-14 KB also fits the above-mentioned injectors and engines. Alternatively the kit can be also used with an impact extractor.

Features:

• Suitable for Siemens injectors with an internal thread M27x1 (SW 27)
• Supplement to the injector puller KL-0186-14 KB
• Depending on the motor specific support bolt kit KL-0186-12 if necessary. / -13 Required
• Alternative drive with impact extractor possible
• Suitable for Siemens injectors with a female thread M27x1 and a spanner size of 27 mm
• Particularly suitable e.g. for PSA 2.0 HDI 90 HP (DW10 TD), etc.

Specifications:

• Suitability: Universal, PSA
• Drive Size: 1/2 in
• Drive Type: Hydraulic, Mechanical, Manual
• Injectors: Siemens/VDO
• Internal Thread: M27 x 1
• Motor Type: Diesel
• Profile: Hexagon
• Size (waf): 27mm
• Weight: 1.1 lbs
• Country of Origin: Germany

Scope of Delivery:

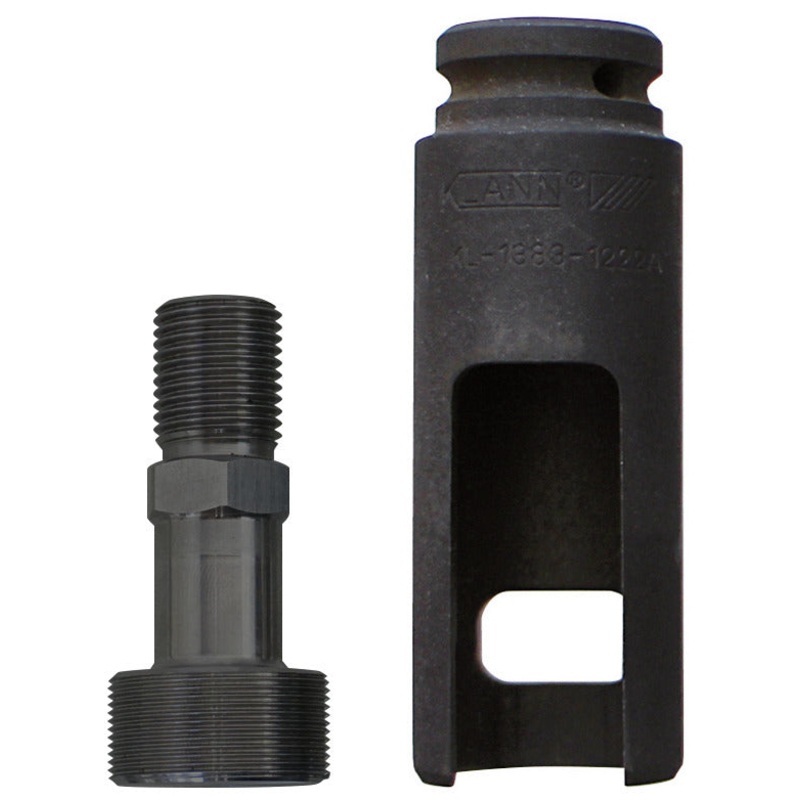

1 x KL-1383-1221 A – Pull adaptor M27 x 1, 1 x KL-1383-1222 A – Special socket spanner SW 27
