Gedore 3420191 Hydraulic Cylinder Set, Short, 17T – GD KL-0040-175 C

In combination with the injector extractor series KL-0186-14 KB, the hydraulic drive kit enables fast and controlled pulling of heavily stuck injectors. For this purpose, it is simply connected to the pull bridge on the injector extractor instead of the mechanical drive.

Features:

• For a controlled pulling of extremely stuck injectors
• In combination with KL-0186-14 KB
• The supplied retaining belt offers particular protection

Specifications:

• Suitability: Universal
• Connection Thread for Hydraulic Coupling: 3/8 in NPT
• Cylinder Diameter: 79mm
• Drive Type: Hydraulic
• Length: 89 – 104mm
• Oil Pressure (Max.): 700 Bar
• Permissible Force (Max.): 170 kN (17T)
• Stroke: 15mm
• Thread: M16
• Weight: 8.82 lbs
• Country of Origin: Germany

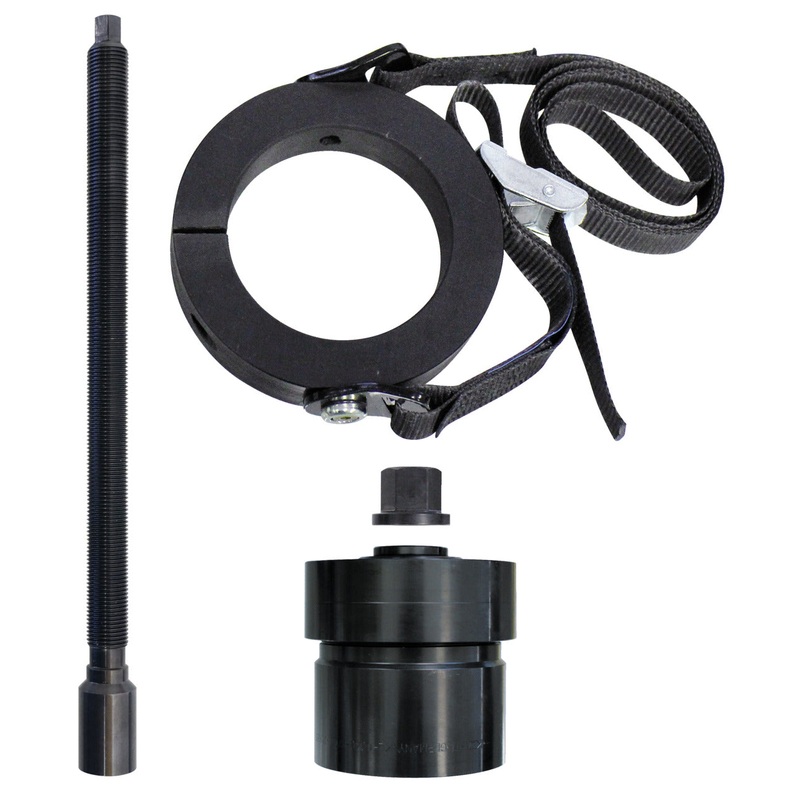

Scope of Delivery:

1 x KL-0040-1700 – Hydraulic cylinder 17 t short, 1 x KL-0040-1741-2 – Collar nut M16 x 1.5, 1 x KL-0040-1790 – Retaining belt for hydraulic cylinder, 1 x KL-0186-1403 – Pull spindle 285mm
