Description

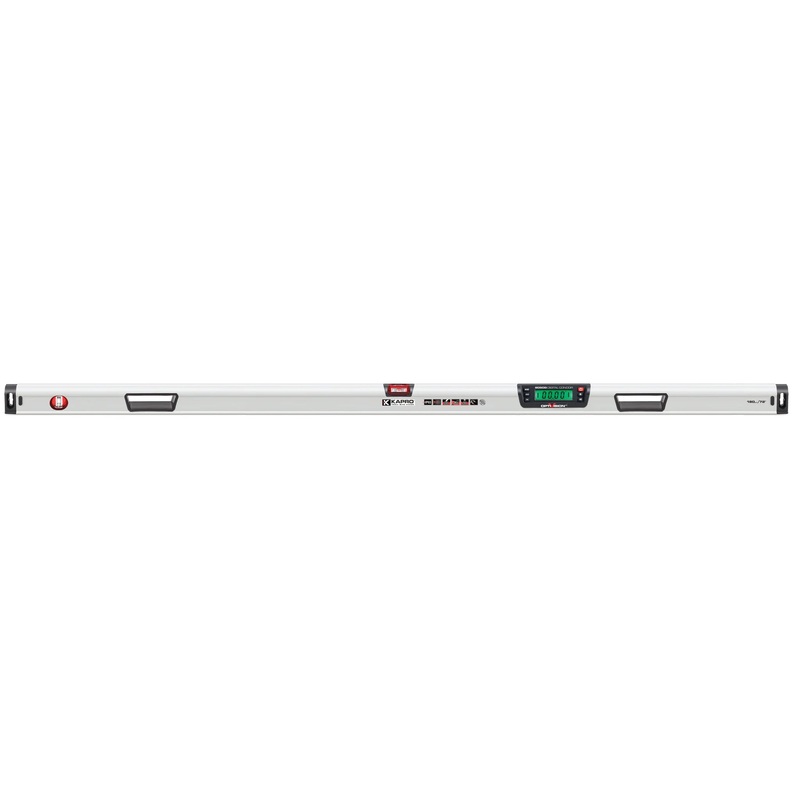

Water, dirt and impacts tools have to take a lot. With the TECH 196 DL electronic spirit level, you are ideally equipped for hard days at the construction site. Cleaning under running water is no problem thanks to ULTRA-PROTECT and the high-precision electronic module does not need to be calibrated even after falling or being exposed to temperature fluctuations. The innovative features of this German Made quality product simplify every measuring task: two digital displays with illumination, acoustic guidance and numerous display modes. State-of-the-art technology for productive work.

Feature Bullets

• Cal-free – Calibration of the electronic system is not necessary during daily use even if the product is dropped or following temperature fluctuations
• Ultra-Protect -: Optimum protection against dust and water as per IP 67 – the spirit level can temporarily be submerged in water
• Pitch Mode -: Defined 1/12, 2/12, 3/12 etc. Optimum readability: Two digital displays that can be illuminated at the touch of a button, Acoustic guidance: Align components quickly without having to look at the spirit level – with two di erent audible signals,
• Ref Node – Accept, save and transfer an angle measurement to other components
• Key-Lock – Keypad lock to protect against accidental inputs, Display modes: deg, %, mm/m, in/- decimal and as fraction, Long operating time: Up to 400 hours, Includes bag for safe transport, Magnetic Version with extra-strong rare-earth magnet system and two digital displays to instantly measure inclinations, slopes and angles
• Long operating time: Up to 400 hours
• Includes bag for safe transport
• Acoustic guidance with two different audible signals
• Two digital displays with optimal read-out in any application situation
• The digital display rotates to the reverse position

Specifications:

Type: Type 196
Power Supply: Battery
Display Type: Digital
Length: 72 in
Accuracy: +/-1/32 in @ 72 in
Number of Vials: 2
Housing Material: Aluminum
Battery Size: 2 AA
IP Rating: IP 67
Includes: Case
Country of Origin: Germany
